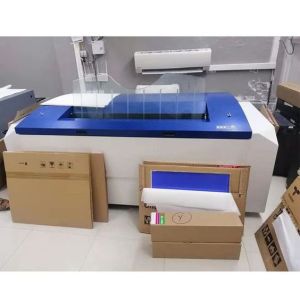

A1 Or B1 Paper Size Thermal CTP Machine Computer To Plate Imaging Machine

Categories CTP Plate Machine
Brand Name: EcooGraphix
Model Number: Ecoosetter T800E
Certification: CE, ISO900
Place of Origin: CHINA
MOQ: 1SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500 SETS/YEAR
Delivery Time: 30 days
Packaging Details: Standard Exporting Package
Product name: A1 Or B1 Paper Size Thermal CTP Machine Computer To Plate Imaging Machine
Resolution: 2400dpi
Exposing Mothod: External Drum
Throughput: 16plates/hour;1030mm x 800mm, 2400dpi
Plate Sizes: Max.1163mm x 940mm Min.400mm x 300mm
Exposing Size: Max.1130mm x 884mm Min.260mm x 284mm
Plate Thickness: 0.15mm to 0.30mm
Plate Loading: Semi automatic
Machine Size: 2320x1080x960(WxLxH)mm
Net Weight: 900kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

A1 Or B1 Paper Size Thermal CTP Machine Computer To Plate Imaging Machine


A1 Or B1 Paper Size Thermal CTP Machine Computer to Plate Imaging Machine (Offline)


Product Description



EcooGraphix Thermal CTP (Plate Making Machine) is the first prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

EcooGraphix T800 series thermal CTP are for
A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH-28PPH.
The CTP is operated by manual, very easy to use.



Specification



Model
T-800E

Exposing Method
External Drum

Imaging System
32-channel, Discrete 830nm laser diode

Throughput
16 plates/hour, 1030mm x 800mm, 2400dpi

Plate Sizes
Max. 1163mm x 940mm, Min. 300mm x 400mm

Media Type
Positive thermal CTP plate

Plate Thickness
0.15mm to 0.30mm

Resolution
2400dpi

Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0/ USB 3.0 (USB 2.0 is recommended)

Plate Loading
Manual

Net Weight
900 KG

Machine Size (WxLxH)mm
2320 x 1080 x 960

Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Operation Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

ECOO T-800 Series Thermal CTP Specifications
ModelT-800XT-800FT-800ST-800E
Imaging System256644832

Output Speed

40282216
1030mm x 800mm / 2400dpi
Plate SizeMax.1163 x 940mm Min. 400mm x 300mm
Plate Thickness0.15mm to 0.30mm
Resolution2400dpi
Weight900KG
Repeatability±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm2320*1080*960mm (W*D*H)
Power SupplySingle phase:220AC +6%, -10%, Power Consumption: 4KW
EnvironmentRecommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70%

Factory And Production Line



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.





More Details



FAQ



Q: What about the installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
