| Categories | Seamless Steel Pipe |
|---|---|
| Brand Name: | DELTA |
| Model Number: | Carbon Steel , Alloy Steel |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 4 Tons |
| Price: | 609 - 820 USD/Ton |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 20Ton per week |
| Delivery Time: | 5 - 10 days based on the quantity |
| Packaging Details: | standard packing for export |
| Products: | seamless steel pipe |
| Diameter: | DN10 - DN600 |
| Thickness: | 1.0 - 50.0mm |
| Length: | 6-10m or cutting as request |
| Standard: | ASTM EN GB DIN |
| Technique: | Hot Rolled |
| Service: | Cutting any length as request |
| MOQ: | 2 Ton |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
AISI1045 / S45C / C45 / 1.0503 Carbon Steel Pipe Tube NB10 - NB400 Steel Hollow Tube

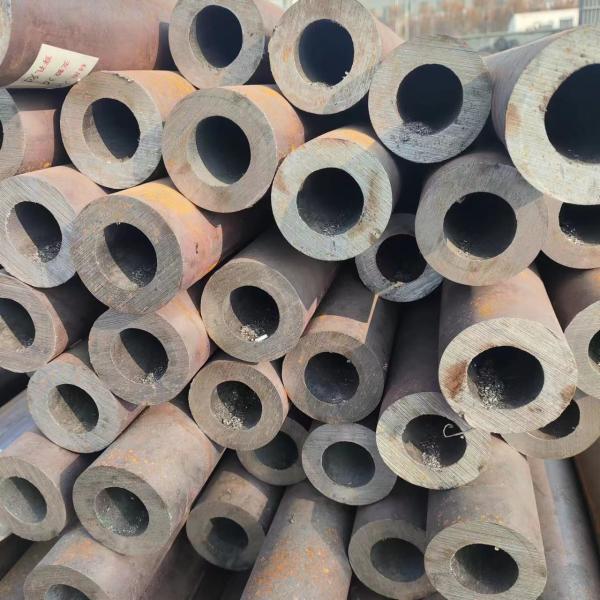

| Name | SAE1045 Hot Rolled Seamless Steel Pipe |
| Surface | Bare,oiled |
| Material | ASTM A106B, ASTM A53B, API 5L Gr.B, ST52, ST37, ST44 SAE1010/1020/1045,S45C/CK45,SCM435,AISI4130/4140 |
| MOQ | 5 tons for normal size and material |
| WT | As customer's requests |
| Payment terms | TT deposit + the balanced against BL copy / LC or 100% LC at sight |
| Trade terms | FOB,C&F,CIF,EXW |
| Length | fixed or random,as customer request. |
| End Treatment | Plain(can be beveled, threaded,punch,shrink,extension... ) |
| Lead time | within 7 days from stock with 6m length (stock pipe with our factory name in Chinese),20-25 days for customized pipe according to the qty |
Carbon steels are a category of steels with 0.12 to 2% carbon content. AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together enable to minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished bars that can be machined unsymmetrically with limited distortion.
The following sections will discuss in detail about AISI 1045 carbon steel.
The chemical composition of AISI 1045 carbon steel is outlined in the following table.
| Element | Content (%) |
|---|---|
| Carbon, C | 0.43-0.50 |
| Manganese, Mn | 0.60-0.90 |
| Sulfur, S | 0.05 (max) |
| Phosphorous, P | 0.04 (max) |
| Iron, Fe | Balance |
The physical properties of AISI 1045 carbon steel are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.87 g/cm3 | 0.284 lb/in3 |
The following table shows mechanical properties of cold rolled AISI 1045 carbon steel.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 585 MPa | 84800 psi |
| Yield strength | 450 MPa | 65300 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.29 | 0.29 |
| Elongation at break (in 50 mm) | 12 % | 12 % |
| Hardness, Brinell | 163 | 163 |
| Hardness, Knoop (converted from Brinell hardness) | 184 | 184 |
| Hardness, Rockwell B (converted from Brinell hardness) | 84 | 84 |
| Hardness, Vickers (converted from Brinell hardness) | 170 | 170 |
The thermal properties of cold drawn AISI 1045 carbon steel are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal conductivity | 51.9 W/mK | 360 BTU in/hr.ft2.°F |
| Thermal expansion co-efficient (@0.000-100°C/32-212°F) | 11.2 µm/m°C | 6.22 µm/m°C |
Other designations that are equivalent to AISI 1045 carbon steel include the following.
| AFNOR XC 42 TS | AFNOR XC 45 | AFNOR XC 48 | AFNOR XC42 |
| DIN 1.1191 | JIS S 45C | JIS S 48 C | SS 1672 |
| ASTM A29 | ASTM A510 | ASTM A519 | ASTM A576 |
| FED QQ-S-635 (C1045) | FED QQ-S-700 (1045) | SAE J403 | ASTM A682 |
| SAE J414 | ASTM A183 (2-Nuts) | ASTM A236 (1045) | SAE J412 |
| ASTM A266 (1045) | ASTM A827 | ASTM A830 | QQ S700 (C1045) |
| SAE J1397 (1045) |
AISI 1045 carbon steel can be heat treated using flame and induction hardening.
AISI 1045 carbon steel can be hammer forged.
The following are the application areas of AISI 1045 carbon steel:
|
