Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine

Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine

Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine
Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine
Categories Woodworking Cutting Machine
Condition: New
Type: Panel Saw
Use: Woodworking, Wood Cutting, Wood Plate Slotting
Style: Horizontal
Place of Origin: Shandong,China
Brand Name: TEING
Usage: Woodworking, Wood Cutting, Wood Plate Slotting
Voltage: 380V/50HZ/3PH, Or Customized
Dimension(L*W*H): 2800*1100*900mm
Warranty: 12 Month
Application: Furniture Factory, Woodworking Factory, Home Use, Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Construction Works
Weight (KG): 700 KG
Power (kW): 5.5KW+1.1KW
Key Selling Points: High-accuracy
Max.Cutting Height at 90°(mm): 80mm
Max.Cutting Height at 45°(mm): 55mm
Max. Length of Workpiece (mm): 2700mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
MAX. Cutting width: 1250MM
Saw blade Diameter: 300MM
Scoring saw blade diameter: 120MM
Main saw spindle speed: 3000/4000/5000 rpm
Scoring saw spindle speed: 7000/8000 rpm
Spindle saw diameter: 30 mm
Scoring spindle saw diameter: 20 mm
Keyword: Woodworking Machine
Dimensions sliding table: 2800x375 mm
Name: Precision Panel Saw
Packaging Details: Export Standard Plywood Case
Port: Qingdao, China
Supply Ability: 2000 Set/Sets per Year
Price: $2,480.00/sets 1-9 sets
Contact Now
Company Info.
Qingdao Skyyihengtong Machinery Equipment Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

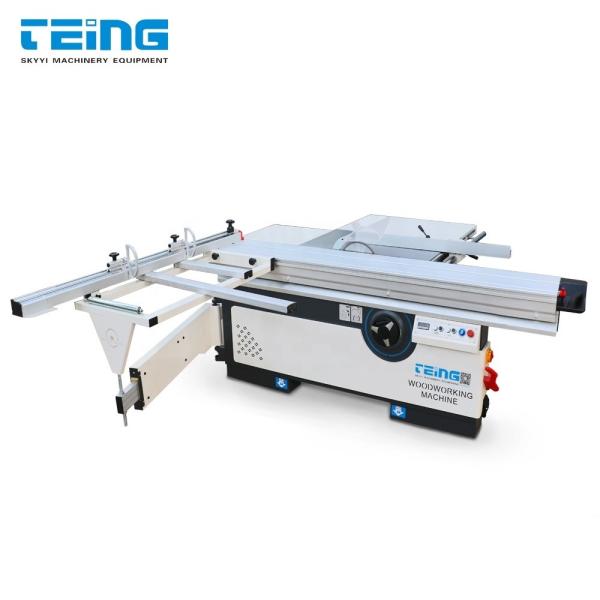

Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine

Product Overview
Technical Data Sheet
Model
WSP2845
Dimensions sliding table
2800x375 mm
MAX. Cutting length
2700 mm
MAX. Cutting width
1250 mm
Saw blade Diameter
300 mm
Scoring saw blade diameter
120 mm
Max. Cutting Thickness
80mm
Main saw spindle speed
4500/6000 rpm
Scoring saw spindle speed
7000-8000 rpm
Spindle saw diameter
30 mm
Scoring spindle saw diameter
20 mm
Tilling saw blade
0-45°
Main motor power
5.5 KW
Scoring motor
1.1 KW
Weight
700KGS
Voltage
380/220V or customized
Main blade up and down
Electric
Overall dimensions
2800*1100*900 mm
Details Images
NO.1 Thickened sliding table,precise and smooth
■ German original factory processing technology comes with a cleaning brush, and the sliding table is maintenance-free.
■Original multi-cavity structure,imported guide rail, high precision, high wear resistance,high tensional strength.
■Standard length is 3000mm,with 3200 or 3800mm length.
■45 degree configuration with double-layer sliding table,imported from Taiwan with round bar and double guide rail.
NO.2 Control panel
■ Concise and atmospheric German industrial design,all kinds of operation integration,clear at a glance.
■Electric ad the height and angle of the main saw blade, and the angle adjustment value can be accurately displayed digitally.
NO.3 Double saw blade
■Equipped with main and auxiliary sawblades, which can be lifting up and down independently,and the small saw blade can be adjusted left and right.
NO.4 Profiling seat
■ Using chrome-plated light bar system, high stability.
■The fixed-length sliding is easy and labor-saving, precise and stable.
■ The control handle is original imported, which is flexible and fast.
■The maximum cutting width is 1100m(1300mm is optional).
NO.5 Motor
■ The core of quality, Germany's most advanced production technology manufacturing integration.
■Main saw shaft: The overall dynamic balance treatment, ensures the quiet operation of the machine.
■Equipped with high-precision linear guides, maintenance-free bearings, and high-strength slides.
NO.6 Big ruler
■Robust and wear-resistant design,the imported scale is clear and durable
■ The peach-shaped baffle is preciseand stable,and can be easily adjusted.
■Can be extended to 3000mm, worry-free cutting for cutting large plates.
NO.7 Thickened body
■Adopt the most advanced frame design from Germany. The body has high tensional strength,sturdy and durable
■Frame structure design, laser welding, completely enclosed. Ensure machine runs quietly and has a high degree of stability.
Exhibition
Company Profile
Qingdao Skyyi Hengtong Machinery Equipment Co.,Ltd is one of the leading manufacturer in the woodworking machinery of China. We have 10000sqm factory and well-known "TEING" brand of sliding table saw, edge banding machine, sanding machine and so on.
With more than 10 years in woodworking machine industry, our machine had sold out to more than 20 Chinese Province, and more than 30 countries and regions, such as: Vietnam, Malaysia, USA, Canada, Brazil, Preu, Pakistan, Russia, Ukraine, India, Uzbekistan, Israel, Yemen, Tailand, Mexico, Ecuador and so on.
We passed the ISO 9001:2008, SGS and other certification, we believe through our efforts to make "TEING" grow up to world famous brand in order to serve worldwide woodworking industry with our quality products.
