| Categories | Figure 8 Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYFTC8Y53 |
| Certification: | CE/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Kilometer |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 kilometers per month |
| Delivery Time: | 2-5days |
| Packaging Details: | Wooden Drum |
| Type: | Outdoor Fiber Optic Cable |
| Number of Conductors: | ≥ 10 |
| Fiber type: | G652D Single mode or as your request |
| Length: | as required |
| Color: | Customized |
| Loose tube: | PBT |
| Jacket: | PE or as your request |
| Central strength member: | FRP |
| Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead |
| Oem: | Available |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description:

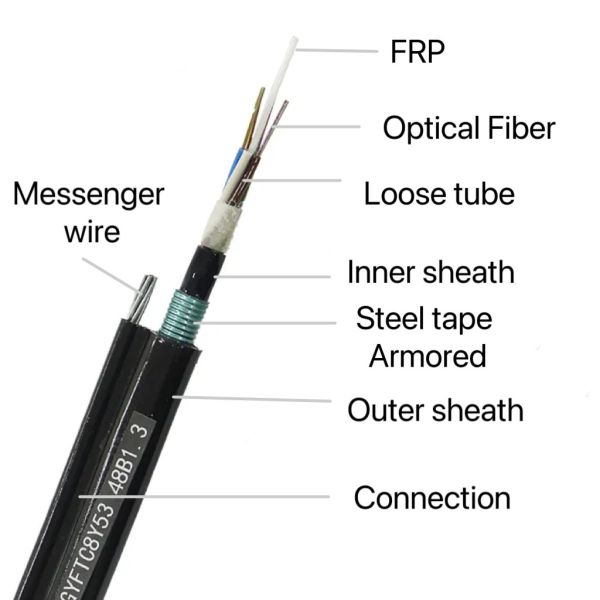

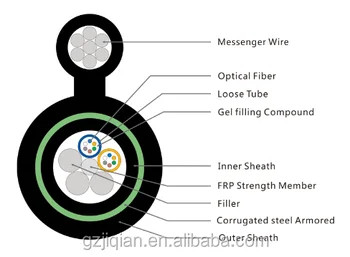

The fiber is placed in a loose sleeve made of high modulus plastic. The pipes are filled with a waterproof filler. The FRP is located at the center of the core and acts as a strength member. These tubes are twisted around the strength member to form a compact circular cable core. This part of the cable, together with the stranded wire as a support part, is completed with a dual PE sheath of figure 8 structure.
Characteristics:
◆ Low loss, low dispersion.
◆ Reasonable design, accurate residual length control and cable forming process, so that the optical cable has mechanical and environmental performance.
◆ Non-metal cable core, with strong anti-electromagnetic interference ability.
◆ Compact structure, light weight, self-supporting erection.
Application:
* Adapted to outdoor distribution.
* Suitable for aerial duct and buried method.
* Long distance and local area network communication.
| item | value |
| Model Number | GYFTC8Y53 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Strength member | Stranded steel wire |
| Central strength member | Non-metal strength member |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.34dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.21dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300nm | ≥500MHZ·km | ≥500MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off | ≤1260nm | ≤1450nm | |||
| Wavelength λcc |
| Items | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
