| Categories | IFM Pressure Sensor |
|---|---|

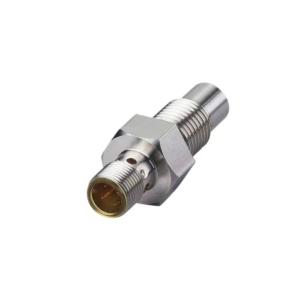

| Brand Name: | IFM |
| Model Number: | M9H200 |
| Place of Origin: | Germany |
| MOQ: | 1pc |
| Price: | $100-$200 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30pcs/month |
| Delivery Time: | 3-5days |
| Packaging Details: | new in box |
| Warranty: | 1year |
| Electrical design: | PNP |
| Output function: | normally open |
| Sensing range [mm: | 9 |
| Housing: | Threaded type |
| Electrical design PNP Output function normally open Sensing range [mm: | 9 |
| System: | Full-metal housing |
| Application: | Hydraulic cylinder |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product characteristics | |
| Electrical design | PNP |
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | Threaded type |
| Dimensions [mm] | M14 x 1.5 / L = 53 |
Application | |
| System | Full-metal housing |
| Application | Hydraulic cylinder |
| Media | Detects ferrous metals |
| Min. bursting pressure [bar] | 2000 |
| Pressure rating [bar] | 500 |
Electrical data | |
| Operating voltage [V] | 10...36 DC |
| Current consumption [mA] | < 23 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs | |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 1.6 |
| Max. leakage current [mA] | 0.1 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Short-circuit proof | yes |
| Overload protection | yes |
Monitoring range | |
| Sensing range [mm] | 2 |
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.62 |
Accuracy / deviations | |
| Hysteresis [% of Sr] | < 15 |
| Switch-point drift [% of Sr] | 10 |
| Repeatability [% of Sr] | 10 |
Operating conditions | |
| Pressure peak [bar] | 1000 |
| Ambient temperature [°C] | -25...85 |
| Protection | IP 65; IP 68; IP 69K |
|
