| Brand Name: | GENY |
| Model Number: | YC99T |
| Certification: | ISO, CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T, L/C, D/P, T/T |
| Supply Ability: | 5 sets / 1 months |
| Delivery Time: | 6~8weeks |
| Packaging Details: | Plywood cases |
| Material: | Aluminum Alloy |
| Voltage Accuracy: | 0.01% |
| Test Current Output: | 1A-50A |
| Phase Range: | 0 -- 360° |
| Input Frequency: | Max. 20Hz |
| Voltage Supply: | 220V±15% /110V±15% (optional) |
| Weight (kg): | 26 |
| Company Info. |
| Guangzhou GENY Electric Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
>
>

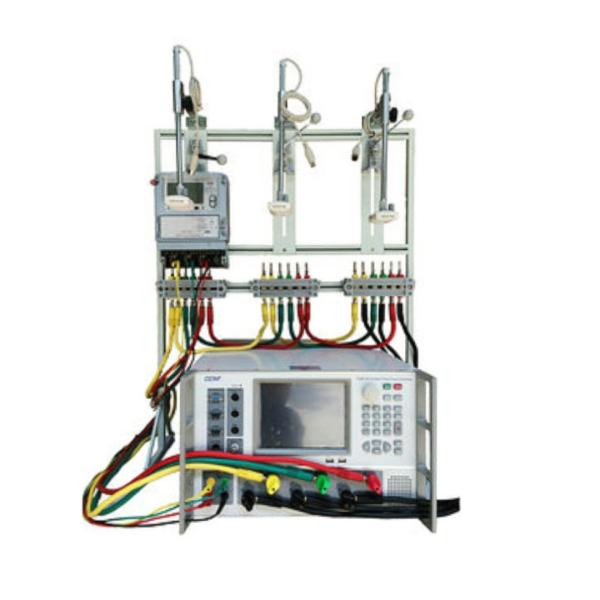

YC99T series is portable three phase meter testing equipment (calibrator), suit for lab and local use. YC99T series calibrator utilizes the testing technology with the lasted development of the energy meter calibration. YC99T5C has exactly software function as YC99T-3C calibration, but different voltage and current output.
YC99T-3C calibrator supports IEC standard communication protocol, and can complete demand indication error, demand period error, time switching error, rate period energy indication error and other multi-function test projects. YC99T-3C Calibrator has constant temperature crystal oscillator, which is able to verify the daily time error of electric energy meter.
YC99T-3C is designed with fantastic panels screen and wiring arrangement. The front and rear panel are designed to be easy-operating.
YC99T-3C not only provides normal meter testing, it also can be used as harmonic power output equipment, which is able to create stable harmonic output.
YC99T series Portable calibrator is capable of detecting daily time error of energy meter.
| Voltage | |
| AC Voltage Range | 57.7V-660V |
| Power of the voltage output | MAX.20VA |
| Resolution | 0.01% |
| Accuracy | 0.1% |
| Stability | 0.01%/120s |
| Distortion factor | 0.2% |
| Current | |
| Test current output | 1A-50A |
| Power of the current output | Max. 50VA |
| Resolution | 0.01% |
| Accuracy | 0.05% |
| Stability | 0.01%/180s |
| Distortion factor | < 0.3% for linear resistance load |
| Phase angle | |
| Range | 0 -- 360° |
| Resolution | 0.1° |
| Accuracy | 0.2° |
| Frequency | |
| Range | 40Hz – 70Hz |
| Resolution | 0.005Hz |
| Pulse output | |
| Harmonic Output | 2-63 |
| Pulse input | |
| Input channel | 3 |
| Input frequency | Max. 20Hz |
| Other | |
| Voltage Supply | 220V±15% /110V±15% (optional) |
| Ambient temperature | 20°C -- 30°C |
| Relative humidity | ≤85% |
| Dimensions (W×H×D) (mm) | 500 X 440 X 180 |
| Weight (kg) | |

|   |
