3 Way HVAC Control Parts Electric Brass Dn 20 Valve For Air Condition

Refrigeration Parts of 3 Way Electric Valve Dn20 Kv6.2 For Air Condition

Product Details:

1. Stem Material: Stainless Steel 06Cr9Ni10

2.Valve Core: brass or Stainless Steel

3.The rest of the parts are Brass

4.Working Medium:water, Fluid Temperature 5-95℃

5.Nominal Pressure(PN):1.6MPa o

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Introduction:

DDF-Z-J Series Cast Brass valve can adjust the flow of cold/hot water after it matched with DFQ-J series motor actuator. It is widely used in the liquid.

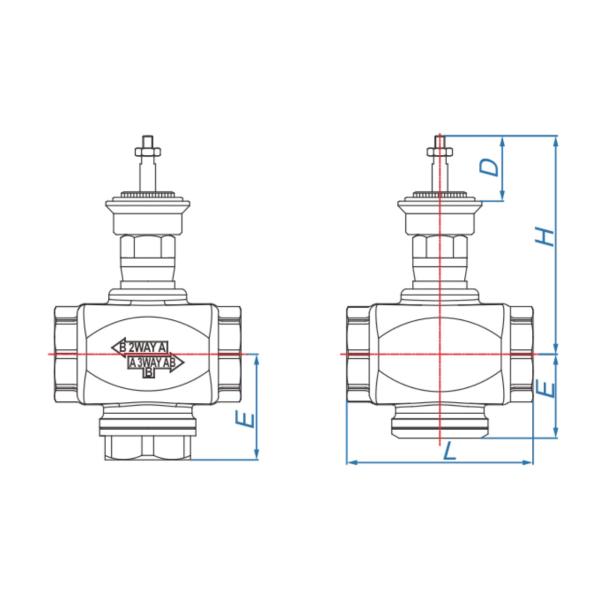

Product Type and Size:

Installation Notice:

1.The valve stem downward running is the closing direction of the valve. Make sure the pipe is clean and without oxide and metal after
welding before installation.

2.It must be at the same point and free from shocks when connect the pipe and valve body. The flow direction
should be same as the direction of the label.

3.When the actuator is vertically installed on the valve, please avoid installing it under the valve to leave enough space for daily maintenance(like remove the actuator).

4. Cut off the electricity to make sure there is no pressure in the water system when maintenance.

Installation Notice:
