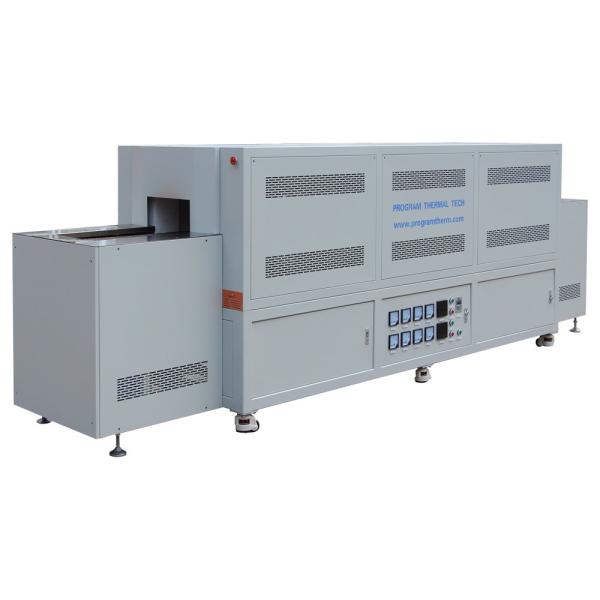

Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled

Mesh Belt Conveyor Drying Furnace up to 500C

Overview for Mesh Belt Drying Furnace

Belt drying furnace is particularly suitable for drying for small workpieces such as metals, ceramics continuously, usually for the complete removal of water or impurities. Belt speed could be adjusted according to heat treatment processes.High alumina insulated chamber with SS 304 built mesh belt, controlled conveying speed, Max working temperature up to 500 degree C.

Main Features

• RT-500°C, adjustable, constant temperature, independent temperature control Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature
• Interior is made of high quality thermal insulation materials with good thermal insulation effect;
  SS304 made mesh belt conveyor
• SiC heating rods, two rows, upper and lower, max heating temperature 500 C
• Double over temperature protection, safe and reliable electrical control
• Prodution output: 40kg/hour, Conveying speed is stable and adjustable
• Two-point heating zones, heating length 2000mm

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

Side views for 500°C Mesh Blet Drying Furnace

Heating Chamebr details for the 500°C Mesh Blet Drying Furnace

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with the mesh belt drying furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
