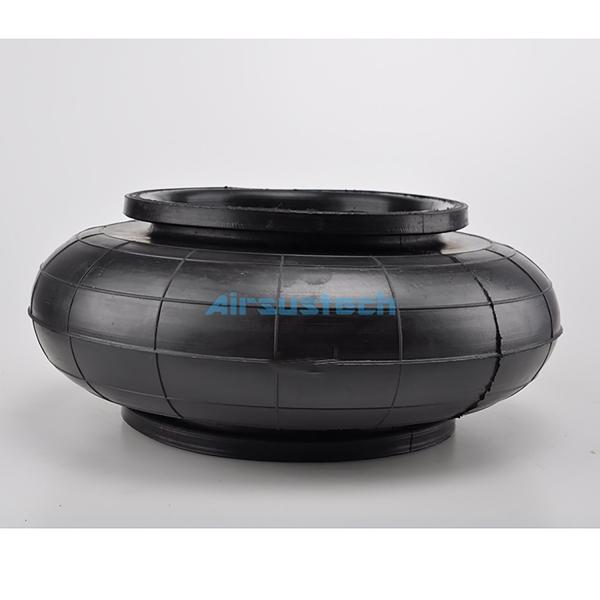

One Convoluted Air Ride Spring Firestone W013580134 Rubber Pneumatic Bellows

One Convoluted Air Ride Spring Firestone W013580134 Rubber Pneumatic Bellows


Refer No.

Specifications and Detailed Technical Parameters: 1F5330

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : M8
Bottom Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance : 228.5
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2NPTF
Cover Plate
Top Diameter: 247 mm
Bottom Cover Plate Diameter: 247 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Max. Diameter: 325mm
Working Stroke: Max 160mm to Min 55mm
Compressed Height: 105mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
Without Girdle Hoop


Product advantage
Guangzhou Guomat Air Spring Co., Ltd. was established in 2008, so far has more than 10 years of experience in air spring. We have been committed to do professional damping equipment, thanks to the following product advantages, our air spring has been popular at home and abroad.
Imported rubber: combined with advanced sol technology, durable, heat resistance, aging resistance and other characteristics.
Integrated casting process: the use of integrated casting process, durable, strong air tightness, anti-leakage and anti-blowout
Easy installation: the shape and size are the same as the original, directly replace the original air spring, convenient installation
Made of fine steel: made of fine steel, anti-fracture, long service life

Transportation and packaging

Transportation:
1. Normally, we will deliver parts within 2-8 working days after receiving payment.
2. We always ship air springs by DHL, UPS, FEDEX and TNT. They can deliver packages to you very quickly. If the parcel is big and heavy, we can send it by sea.

Packing:
Air freight: packed in strong cartons;
By sea: packed in waterproof materials, pallets and wooden cases if necessary.
Air springs are used in industrial applications
Air spring provides a solution for vibration guided installation of a variety of machines. From complete technical design to coordination of single system components. Air spring is suitable for a variety of equipment, can effectively reduce the impact of vibration on equipment. At present, more and more industrial equipment use air springs. The GUOMAT air spring allows very low natural frequencies, 0.5-3.5 Hz, depending on the type. Air isolators, with loads ranging from 0.5 KN to over 440 KN, provide an effective installation for sensitive measuring instruments and heavy duty bases.

The related picture of 1F5330
