Full-Duplex Half-Duplex S5700 Series Switch for Volume Data Transfer and Performance

Contact Now

Add to Cart

Company Info.

Beijing Yongchang Gaotai Technology Development Co., Ltd.

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Products Description

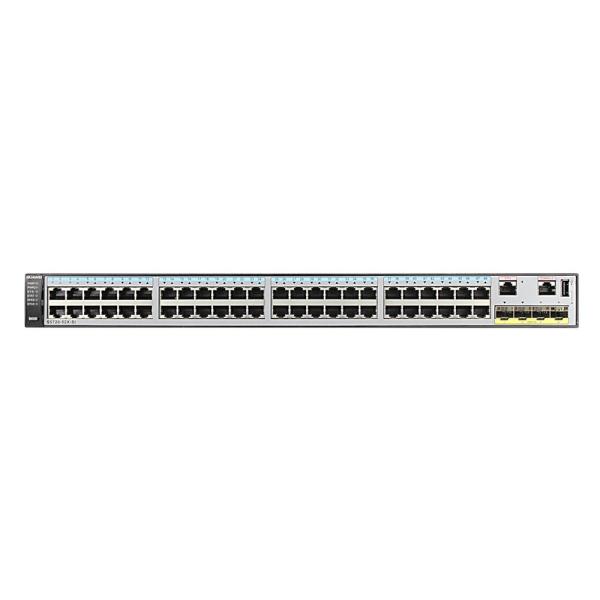

H3C S5720-52X-Si-DC Switch

Selling Units:Single item
Single package size:65*40*25cm
Single gross weight:15.000 kg

Item	H3C S5720-52X-Si-DC Switch
Memory (RAM)	512 MB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	73.23 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	* Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode * Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	* Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) * Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)
Weight (with packaging)	9.5 kg (20.95 lb)
Stack ports	GE electrical ports and 10GE SFP+ optical ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	57.9 W
