Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Cutting Machine Springs

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B7679
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD59.9-69.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product Name: Industrial Air Spring
Quality: 100 % Tested
Cross Reference: Firestone W01-M58-7679
Transport Package: Strong Cartons
After-sales Service: 12 Months
Type: Gas-Filled
Color: Black
Goodyear: 2B9-269
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Cutting Machine Springs

Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Cutting Machine Springs


OEM NO.


Firestone W01-M58-7679

Firestone W01M587679

Firestone W01 M58 7679

Firestone WO1-M58-7679

Firestone WO1M587679

Firestone WO1 M58 7679

Firestone 20C2

Goodyear 2B9-269

Goodyear 2B9 269

Goodyear 2B9269

Contitech FD200-19

Contitech FD 200-19

Contitech FD200-19 1/4 M8

Contitech FD 200-19 1/4 M8

Dunlop S0 9280

Dunlop S09280

Gart T291/2B

R.O.R/Meritor 21221356

Weweler US 07394F

Schmitz Trailer 016808

Granning 15670


FD 200-19 Purchase Order

TypeOrder No.
rubber bellows only
with bellows plates,G1/4 air inlet A=44.5mm excentrical
with bellows plates,G3/4 air inlet A=38.1mm excentrical

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B7679


Nut/blind nut

Top plate screw (nut) teeth: 2XM10×1.5
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM10×1.5
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The screw center distance between the air hole and the nut: 44mm

Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160mm

Bell rubber bellows

Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 95 mm
Stroke height: 230mm

Bumper block/bumper block

Without bumper block

Belt loop/Girdle hoop/Girdle ring

One piece of belt loop/girdle hoop/girdle ring


Min.pressure0 bar
Return force to min height≤200N
Overall3kg

Packing Details


Model No.

Net Weight

Gross Weight

Box Weight

Box Size

Packing Quantity

2B7679

4.07kg

4.45kg

0.38kg

24*24*24cm

1


Rubber air springs for cutting machines


Cutting machine tools belong to the category of electrical processing, and are mainly composed of three major parts: CNC wire cutting machine tools, mechanical, electrical and working systems. On the premise of not using any shock absorption equipment, the cutting machine will vibrate during use.
In order to avoid unnecessary trouble caused by vibration and improve the service life of the machine, it is necessary to dampen it. The rubber air spring has a good effect of absorbing shock absorption, so the rubber air spring of Guomat can be widely used in cutting machine tools. If you have any requirements, please feel free to contact us via email or telephone.

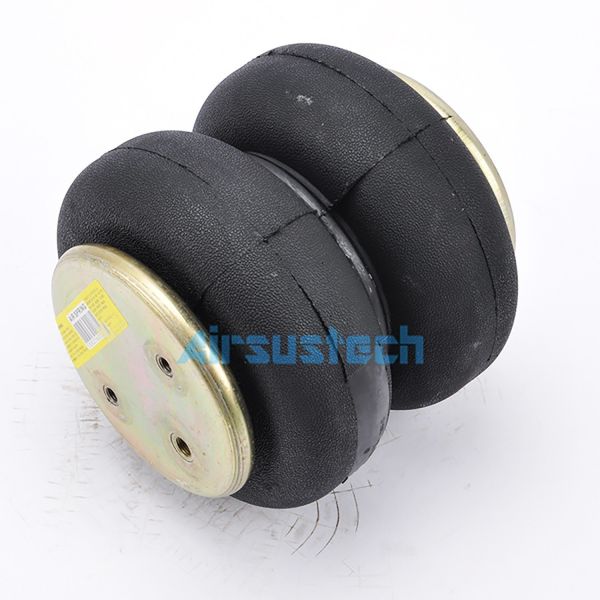

The related picture of 2B7679

Fire-Stone Air Bags W01-M58-7679/20c2 Double Convoluted Industrial Cutting Machine Springs
