| Categories | Hydraulic Seal Kit |
|---|---|
| Brand Name: | SUNCAR |
| Model Number: | XJBN-00971 XJBN00971 2437U407R300 Main Pump Seal Kit |
| CertifiC-A-Tion: | ISO9001 |
| Place of Origin: | CN |
| MOQ: | 10 Sets |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 550 sets per week. |
| Delivery Time: | 3-7 days after payment received(Public Holiday Excluded) |
| Packaging Details: | PP bag inside,carton box outside. |
| Material: | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Condition: | New, 100%new, brandnew |
| Brand or manufacturer: | HYUNDAI construction |
| Style: | Hydraulic seal,Mechanical seal |
| Part name: | XJBN-00971 XJBN00971 2437U407R300 |
| Market: | Those in need |
| Applicability: | HYUNDAI construction |
| Compatible model: | R210LC-7 R220LC-7 |
| AppliC-A-Tion: | Machinery repair shops, excavator repair shops;Excavator;Hyundai |
| Feature: | Oil resistance, Heat resistance, Durable, Sealing performance, Manufacture |
| Standard or nonstandard: | Standard |
| Company Info. |
| GUANGZHOU SUNCAR SEALS CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

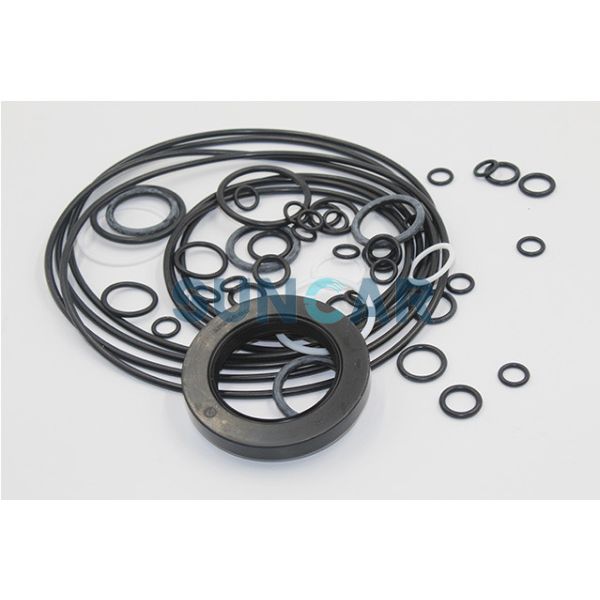

XJBN-00971 XJBN00971 2437U407R300 Main Pump Seal Kit For Hyundai 7-Series Crawler Excavator Main Pump R210LC/220LC-7
Description: Pump seal kit use in pump,main function is sealing oil.The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaf.
| Product name | XJBN-00971 XJBN00971 2437U407R300 Main Pump Seal Kit |
| Brand | SUNCAR |
| OEM No. | XJBN-00971 XJBN00971 2437U407R300 |
| Color | As per standard color |
| Pump number | 31N6 -10010,31N6 -10050,31N6 -10051 |
| AppliC-A-Ted model | HYUNDAI R210LC-7 R220LC-7 |
| Feature | Oil resistance, Heat resistance, Durable, Sealing performance, Manufacture |
| Advantage | 1. Products are enjoying great reputation for its
diversifiC-A-Tion,Innovation,and Superior Quality |
| Part name | Main pump seal kit |
| Relative seal kit | Boom cylinder seal kit / Arm cylinder seal kit / Swing motor seal kit / Travel motor seal kit / Main pump seal kit / Pilot pump seal kit / Regulator valve seal kit / Main control valve seal kit |
| Package | PP bag, carton, wooden box, or as required |
| AppliC-A-Tion | Machinery repair shops, excavator repair shops;Excavator;Hyundai |
| MOQ | 100 sets |
| Type | Excavator seal kit;Hydraulic seal kit;Main pump seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Relative Brand | Komatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,Mitsubishi and more. |
| Packaging | Nuetral packaging or OEM packaging |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
| Loading port | Huangpu port,China |
| About us | The scope of our business Excavator parts for excavator of various models and brands |
| Pos. | Part No | Qty | Parts name |
| *. | 31N6-10010 | [1] | MAIN PUMP ASSY |
| *. | 31N6-10050 | [1] | MAIN PUMP ASSY |
| *. | 31N6-10051 | [1] | MAIN PUMP ASSY |
| *-1. | @ | [1] | MAIN PUMP UNIT |
| 111 | XJBN-00077 | [1] | DRIVE SHAFT(F) |
| 113 | XJBN-00078 | [1] | DRIVE SHAFT(R) |
| 114 | XJBN-00351 | [1] | COUPLING-SPLINE |
| 123 | XJBN-00079 | [2] | BEARING-ROLLER |
| 123 | XJBN-00950 | [2] | BEARING-ROLLER |
| 124 | XJBN-00080 | [2] | BEARING-NEEDLE |
| 127 | XJBN-00081 | [4] | SPACER-BEARING |
| NS141. | XJBN-00067 | [2] | BLOCK-CYLINDER |
| NS151. | XJBN-00061 | [18] | PISTON |
| NS152. | XJBN-00062 | [18] | SHOE |
| *-11. | XJBN-01116 | [1] | SET PLATE KIT |
| 153 | XJBN-00082 | [2] | PLATE-SET |
| 156 | XJBN-00353 | [2] | BUSHING-SPHERICAL |
| 156 | XJBN-00083 | [2] | BUSHING-SPHERICAL |
| 158 | XJBN-00354 | [2] | SPACER |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER |
| 211 | XJBN-00085 | [2] | PLATE-SHOE |
| NS212. | XJBN-00070 | [2] | PLATE-SWASH |
| S214. | XJBN-00071 | [2] | BUSHING-TILTING |
| 251 | XJBN-00086 | [2] | SUPPORT |
| 261 | XJBN-00087 | [1] | COVER(F)-SEAL |
| 271 | XJBN-00088 | [2] | CASING-PUMP |
| 312 | XJBN-00089 | [1] | BLOCK-VALVE |
| S313. | XJBN-00065 | [1] | PLATE-VALVE(R) |
| S314. | XJBN-00068 | [1] | PLATE-VALVE(L) |
| 401 | XJBN-00090 | [8] | SCREW-HEX SOC HD |
| 406 | XJBN-00355 | [4] | SCREW-HEX SOC HD |
| 466 | XJBN-00356 | [2] | PLUG |
| 468 | XJBN-00357 | [4] | PLUG |
| 490 | XJBN-00032 | [18] | PLUG |
| NS531. | XJBN-00358 | [2] | PIN-TILTING |
| 532 | XJBN-00091 | [2] | PISTON-SERVO |
| 534 | XJBN-00092 | [2] | STOPPER(L) |
| 535 | XJBN-00093 | [2] | STOPPER(S) |
| NS541. | XJBN-00073 | [4] | SEAT |
| NS541. | XJBN-00859 | [4] | SEAT |
| NS543. | XJBN-00074 | [2] | STOPPER 1 |
| NS543. | XJBN-00860 | [2] | STOPPER |
| NS544. | XJBN-00076 | [2] | STOPPER 2 |
| NS544. | XJBN-00861 | [2] | STOPPER |
| S545. | XJBN-00359 | [4] | BALL-STEEL |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK |
| K702. | XJBN-00918 | [2] | O-RING |
| K710. | XJBN-00095 | [1] | O-RING |
| K717. | XJBN-00096 | [4] | O-RING |
| K724. | XJBN-00361 | [16] | O-RING |
| K725. | XJBN-00362 | [4] | O-RING |
| K728. | XJBN-00363 | [4] | O-RING |
| K732. | XJBN-00912 | [2] | O-RING |
| K774. | XJBN-00098 | [1] | SEAL-OIL |
| 789 | XJBN-00099 | [2] | RING-BACK UP |
| 792 | XJBN-00100 | [2] | BACK-UP RING |
| 806 | XJBN-00101 | [2] | NUT |
| 808 | XJBN-00364 | [2] | NUT |
| 824 | XJBN-00102 | [2] | RING-SNAP |
| 885 | XJBN-00103 | [2] | PIN-VALVE PLATE |
| 886 | XJBN-00365 | [4] | PIN-SPRING |
| 901 | XJBN-00104 | [2] | BOLT-EYE |
| 953 | XJBN-00105 | [2] | SCREW-SET |
| 954 | XJBN-00106 | [2] | SCREW-SET |
| 981 | XJBN-00156 | [1] | NAME PLATE |
| 981 | XJBN-00391 | [1] | NAME PLATE |
| 983 | XJBN-00341 | [2] | PIN |
| *-2. | @ | [1] | REGULATOR |
| *-3. | @ | [1] | GEAR PUMP |
| *-4. | @ | [1] | EPPR VALVE |
| 11 | XJBN-00060 | [2] | PISTON SUB ASSY |
| 13 | XJBN-00063 | [1] | CYLINDER ASSY(RH) |
| 14 | XJBN-00066 | [1] | CYLINDER ASSY(LH) |
| 30 | XJBN-00069 | [2] | SWASH PLATE SUB ASSY |
| 41 | XJBN-00072 | [2] | CHECK VALVE ASSY 1 |
| 42 | XJBN-00075 | [2] | CHECK VALVE ASSY 2 |
| 530 | XJBN-00366 | [2] | TILTING PIN ASSY |
| K. | XJBN-00971 | [1] | PUMP UNIT SEAL KIT |
|
