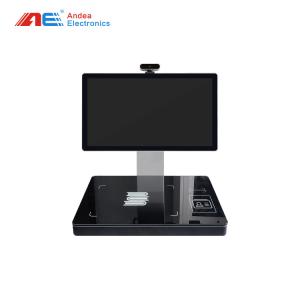

OEM ODM RFID Library Book Borrow And Return Machine Self Service Kiosk With Built-In Thermal Printer Barcode Scanner

Control Host

(optional)

Windows:

• The industrial host control adopts a new generation of processors, high-speed chipsets, low power consumption, fast running speed, 3C certificated
• Working temperature -20~60 degrees;
• Win10 system, Intel-i3-4th generation CPU
• 8G memory, 128G solid state drive
• WiFi (4G is optional)
• Configuration can also be customized according to needs.

Android:

• Rockchip’s chip, low power consumption
• High performance 28nm HKMG pross, super quad-core Cortex-A17, RK3288 motherboard
• Memory 2GB 8GB flash Ethernet WiFi Bluetooth
• Working temperature -20~60 degrees
• Android 7.1 system
• 4G full netcom module is optional

• Embedded industrial touch screen, sensitive, high temperature resistant, shockproof and explosion-proof
• Ten-point capacitive touch, durability: withstand more than 60,000,000 single-point touches, response speed: <2ms, positioning accuracy: more than 99% of the touch area is ± 3mm, minimum touch body: ≥1mm any current sensing object of the human body, scan rate: 60scans/s
• Touch resolution: 32767×32767, light transmittance: >91%, 3mm full tempered high-modulus 7-level explosion-proof glass

• 21.5 inch display screen: resolution: 1920×1080, display ratio: 16:9,
• Backlight type: LED liquid crystal display
• Viewing angle: 85/85/80/80, color depth: 16.7M, brightness: 250cd/m², response Time: ≤5ms.
• Port: 1×power, 1×VGA, 1×HDMI

HF:

• Support protocol: ISO15693 and ISO18000-3 standards;
• Operating frequency 13.56MHz;
• maximum output power is 1.5W;
• Metal shielding design which can be embedded in metal equipment;
• Integrated design; stable product, fast card reading speed;
• Communication interface RS232;
• Identification area: 250*300mm

UHF:

• Operating frequency 860~960MHz;
• Support EPCglobal Gen 2, ISO 18000-6C standard;
• Maximum gain 32db;
• Identification area: 250*300mm

• High-frequency multi-protocol reader RL863;
• Support 15693, 14443A, 14443B (read-only physical card number) reader card (optional ID card and 2-in-1 card reader)

Barcode and QR Code Scanner

(optional)

• Professional embedded two-dimensional scanning platform, professional book barcode scanner, can easily read one-dimensional barcode and two-dimensional code of mobile phones with various screen brightness.
• Built-in super-sensitive response module, fast sensing, fast barcode reading, soft light prossing;
• Light sour 5600K LEDs (illumination), Image sensor 752pixels(H)*480 pixels(V), Prossor ARM32-bit; Super large viewing angle up to 115 °*90°, ambient light resistance 100000Lux

• Imaging technology: Capacitive reflection induction imaging
• Antistatic index: ±15KV
• Fingerprint image entry time: <1 second
• False recognition rate ≤0.0001% (one million coPieces, security level adjustable), Built-in fingerprint template library, equipment not lost after power failure. Communication interface: U port communication, TTL level,
• Anti-electromagnetic interference: meet the International Electrotechnical
• Commission IEC61000-4-3 standard, Working temperature: -10～60℃

Thermal Printer

(optional)

• Professional 80mm reipt thermal printer, supports electric door opening and paper change
• Printing density: 8 dots/mm.
• Printing direction: Paper feeding direction
• Printing speed: 150mm/s (Max)
• Paper width: 79.5±0.5mm.
• Effective printing width: 72mm.
• Paper handling method: automatic paper cutting.
• Line width: 3.75mm
• Serial communication
• With 3C and certification

• Use Aptina's CMOS and Taiwan's new DSP technology to achieve high-quality image output.
• The integrated structure design of the product itself has functions such as automatic white balance, AE, etc., which can adjust the camera parameters according to the actual situation to meet the application of the camera in different environments, and add lightning protection
• Monocular, the highest definition: 1920*1080 , backlight compensation 3 million pixels, transmission rate: 480MB/S

• All-in-one machine comes with 8 ohm 5W cabinet speaker

• The equipment is made of high-quality sheet metal with fine craftsmanship;
• The surface is treated with environmentally friendly spraying, smooth and clean; Durable and not easy to corrode;
• Professional and unique appearance, simple and intuitive;
• Ultra-thin platform design, modular structure design of the whole machine, in line with ergonomics
• Safe to use and easy to maintain

• Power button, WiFi, 1 USB port, 1 network interface;
• reserved 4G antenna interface

• DC12V 8A adapter power supply, 3C, and FCC certification,;
• Working temperature: -10℃ to +40℃;
• In line with Energy Star; in line with RoHS standards;
• Can withstand 264V AC input surge current 50A, output short circuit, over current, over voltage and over temperature protection
