| Brand Name: | D-fit |
| Model Number: | DF-813D |
| Certification: | CE, FCC, ROHS, SGS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, etc |
| Supply Ability: | 1000 pcs/week |
| Delivery Time: | within 3-7 working days upon receipt of payment |
| Packaging Details: | 36 pcs/carton |
| Application: | Shop/office/home monitoring |
| Lens: | f: 1.44mm 2Mega pixels |
| Image resolution: | 2MP |
| Visual angle: | Panoramic 360° |
| Image Sensor: | 1/3 "color CMOS sensor |
| IR distance: | 10 meters |
| Name: | panoramic indoor security camera |

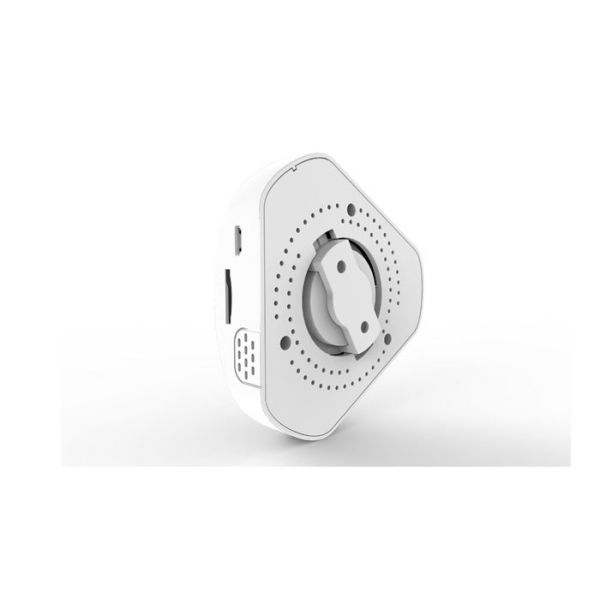

360° Panoramic 960p wireless home security camera system smart home
hd wireless ip night vision and motion detective
Ⅰ. 360° panoramic intelligent HD network camera
Panoramic view be clear at a glance, 360° panoramic monitoring
Infrared night vision day and night, two-way voice clear intercom,
960P HD quality
Product function introduction
Infrared night vision, 3D view, Two-way voice, Wireless connection,
Motion detection, Panoramic monitoring, TF card storage, Cloud
storage
Ⅱ. Applications:
1. security, vacation home monitoring
2. pet monitoring
3. nanny cam
4. business/restaurant/library monitoring
5. Senior/children monitoring
6. Office monitoring
7. Shop monitoring
8. remote live video streaming via smartphone, tablet, and PC
Ⅲ. Features:
1. Use P2P cloud technology, plug and play, without complex settings, can penetrate a variety of broadband networks.
2. Equipped with the cloud ID, real one-touch remote control.
3. Support mobile phone and computer at the same time remote video and sound monitoring.
4. With built-in WIFI antenna, no complex wiring.
5. Support the iOS / Android system and support multilingual languages
6.Support motion detection alarm : can set motion detection alarm, will send alarm and picture or video to specified email.
7.Computer client CMS software, can centrally manage and monitor a number of equipment, multi monitoring and recording video.
8.Support TF card storage, maximum storage: 128GB
9.Support unlimited users online, at the same time the number of people online up to 5 people

Ⅳ. Specification:
| Sensor | SC2235H CMOS |
| CPU | GK7102S |
| System | Embedded LINUX OS |
| Pixel | 1080P |
| Resolution | 1920×1080 |
| Dynamic range | 52dB |
| Noise reduction | 3D DNR |
| Electronic shutter | 1s~1/100000s |
| Minimum illuminance | Colour: 0.1 Lux(F1.2,AGC ON) |
| BW: 0.05 Lux(F1.2,AGC ON); 0 Lux with IR | |
| Color turn Black | Internal/External synchronization,Clour/BW Setting |
| Lens | |
| Focal length | 3.6mm |
| Horizontal view | 80° |
| Interface type | φ12 |
| Infrared | |
| Infrared distance | 15m |
| Infrared LED | 23pcs led light |
| Interface performance | |
| Audio | Built-in microphone and speaker, two way audio |
| Memory Card | Support |
| Network | WIFI |
| Coding type | |
| Video compression | H.264/M-JPEG |
| Audio compression | G.711A/G.711U/ADPCM |
| Coding type | BaseLine Profile/Main Profile/High Profile |
| Video stream | 32K~2Mbps |
| Audio stream | 8Kbps,32Kbps,48Kbps |
| Transmission mode | Dual stream |
| Other functions | |
| Local storage | Micro SD Max Support 128GB |
| Network protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE |
| DDNS/NFS/FTP/NTP/RTP/RTSP/SNMP/SMTP | |
| IP address | Support static and dynamic IP addresses |
| System permission | Username and password custom |
| System clock | Built-in clock,External synchronization,NTP,Time zone |
| Remote management | Remote update and Setting |
| Smart alarm | Motion detection |
| General function | One bond recovery,FLK,Password |
| General specification | |
| Levels of protection | lightning protection ,surging protection |
| Temperature | -20℃~60℃ |
| Humidity | 0~95%(No condensation) |
| Power supply | DC5V |
| Power consumption | <5W |



|
