11m Intercity Electric Bus DANA Axle Zev Tourist Coach Bus With 45 Seats

Categories Zev Bus
Brand Name: ZEV
Model Number: CDL6100LRBEV
Certification: ISO
Place of Origin: Chengdu, China
MOQ: 1 unit
Price: USD 120000-150000 unit
Payment Terms: L/C, T/T
Supply Ability: 5000 units per year
Delivery Time: 30 working days
Packaging Details: in nude
Product name: 11m Electric Intercity Bus Zev Tourist Coach Bus with 45 Seats
Seat No.: 45+1
Motor: PMSM
Motor power: 160kw
Motor torque: 3200N.m
Battery type: LiFePo4
Battery capacity: 238
Axle: DANA
Suspension: Air bag
Transmission: Auto
Brake: Energy retrieve
Tyre: 11R22.5
AC: 30000
Charging time: within 3h
Dringing range: ≥250km
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

11m Intercity Electric Bus DANA Axle Zev Tourist Coach Bus With 45 Seats

11m Electric Intercity Bus Zev Tourist Coach Bus with 45 Seats
Specs
Overall specsPassenger capacity45+1 seatsMotor specsManufacturerZEV
Vehicle size (mm)10990*2500*3600ModelZEV
Wheel base (mm)5700PositionRear
Front/Rear overhang2290/3000Motor typePMSM
Front/Rear tread2060/1865Max.power(kw/rpm)160
Approach/Departure(º)10/9Max. torque (N.m/rpm)1200
Max. Grade-ability(%)≥20%Displacement(L)--
Top speed (km/h)110km/hFuelElectric
Curb weight (kg)11600Emission--
Gross weight (kg)17700
Battery238.06 kwh,LiFePo4
Cruising range≥200km
Charging TimeWithin 2 hours
ItemSpecsRemarks
ChassisFront axleDANA
Rear axleDANA
TransmissionAuto transmission
SuspensionAir bag
SteeringIntegral power steering
BrakingFront disc and rear drum ; dual circuit air brake, WABCO ABS, slack adjuster
Tyre11R22.5 steel rim Tubeless radial tire
BatteryMaintenance-free type
electronicsAC30000kcal/h
Defrosteryes
InstrumentBus instrument, English system
Audio-systemMP5 TV
LightsFront and rear combination light. Fog light.
Monitoring systemCCTV system with 5 cameras
Bus facilitiesBodySemi-loaded
Passenger doorFront aluminum swing door
WindowSliding side window, laminated front windscreen and tempered rear-shield
Passenger seat45 artificial leather passenger seats
InteriorPVC duct, PVC composite side plate.
Floor and floor coverPVC floor, anti-slippery, flame retardant leather
PaintSolid paint
OthersSafety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,travel record with GPS

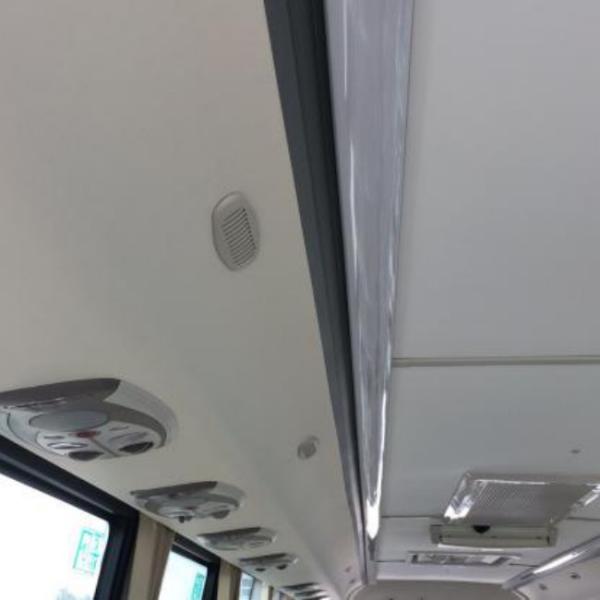

Pictures for reference

FAQ

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.


Q: What can we offer?

A:

  • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
  • Buses and coaches CBU, KD kit, Chassis and Body frames
  • Spare parts including various charger for EV

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .


Q: What’s the delivery time?

A: Normally 20-35 workdays.


Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
