| Brand Name: | Turboo |
| Model Number: | ES302D |
| Certification: | ISO9001 CE FCC |
| Place of Origin: | Guangdong China(Mainland) |
| MOQ: | 2 PC |
| Price: | Bargain |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Delivery Time: | 10 days |
| Packaging Details: | Wooden Case Package |
| Product Size: | 1500*150*980mm |
| Pass Width: | 600mm to 900mm |
| Thickness: | 1.2mm SUS304 |
| Material: | SUS304 hairlane 400# |
| Filling Panel Material: | 6mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Type: | high spped gate |
| Communication: | RS485 Dry contact |
| Pass rate: | 35~40 person/min |
| Working environment: | Indoor/outdoor |
| Company Info. |
| Turboo Automation Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

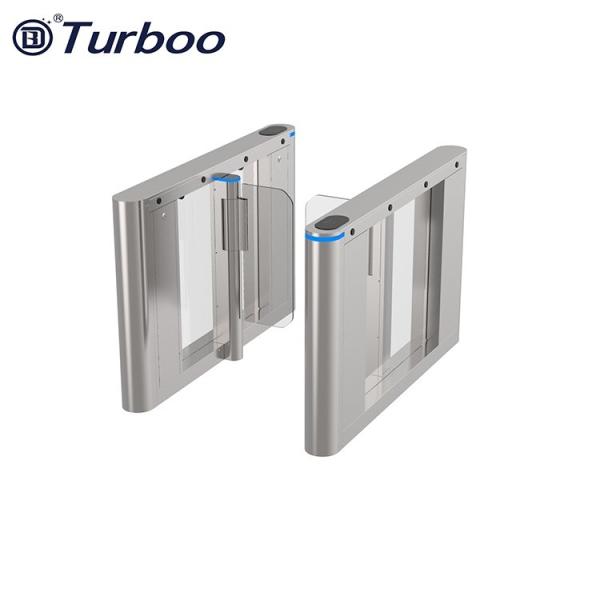

Fast Access Control Speed Gate Turnstile Barrier Gate With LED Strip Bar
Turboo swing barrier gate, speed turnstiles which is made of stainless steel and acrylic in a modern style, their elegant and versatile design presents a secure and stylish solution that can blend into numerous locations. After each passage the gate arm panel is smoothly reset to home position.
When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user. The turnstile has the ability to control access smoothly and effectively.The machine is well in design, rustproof, durable and can resist external destroy.
It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | ES302D |
| Product Size: | 1500*150*980mm |
| Pass Width: | 600mm to 900mm |
| Net Weight: | 65kg |
| Thickness: | 1.2mm sus304 hairlane 400# |
| Material: | SUS304 |
| Top cover Material: | SUS304 |
| Filling Panel Material: | 6mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Servo Brushless Motor |
| Infrared Sensor: | 4 pairs |
| Throughput rate: | 35p/m-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 100w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
1. Bi-directional access information monitored by electronic microprocessor,·Adjustable opening and closing intervals, configured via electronic card.
2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
3. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
4. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. The barrier can be set to delay closing in 1-60s after a valid card-reading.

|   |
