| Categories | IP Mesh Network |
|---|---|
| Brand Name: | Suntor |
| Model Number: | ST9904US |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | Checking with Sales |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |
| Delivery Time: | in 12 days |
| Packaging Details: | normal packing |
| Working frequency: | 1300-1500 GHz(1300-1500 can be customized) |
| Bandwidth: | 5/10/20 MHz |
| RF power: | 4W |
| Video input: | IP network and WIFI |
| LOS: | 30KM |
| NLOS: | 300-1000m |
| Application: | UAV,UAS,UGVUSV etc |
| Receive Sensitivity: | -100dBm@5MHz |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

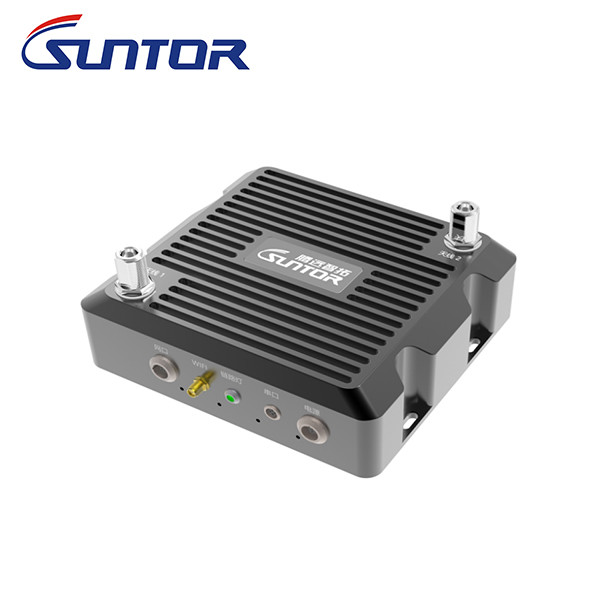

Soft Defined Radios Private IP Mesh network For Drone/ UAV / UGV / USV
1. Feature Of Soft Defined Radios Private IP Mesh Network
---- Can be rapid deployment
----- Beidou Positioning
----- No central Networking
----- Small size with light weight
---- Ready to use at start up
---- Strong Instultability
2. Description of Soft Defined Radios Private IP Mesh Network
Unmanned System Mesh Network radio,with small size, light weight, easy to install,
The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
The transmission distance can reach more than 10km in the open environment on the ground, 300-1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.
3. Specification of Soft Defined Radios Private IP Mesh Network
| System Parameter | ||
| Operating frequency | 1300~1500MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 52Mbps@20MHz,can be choose 100Mbps | |
| RF Transmitted power | 4W | |
| Receive Sensitivity | -100dBm@5MHz | |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | >10 hops | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | DES/AES128 / AES256 (Optional) | |
| Power supply mold | DC 20-36V supply | |
| Power Consumption | ≤42W | |
| Equipment interface | ||
| Antenna interface | N-K×2 | |
| WIFI interface | SMA-K | |
| Series interface | Aviation interface | |
| Ethernet interface | Aviation interface | |
| Power interface | Aviation interface | |
| Physical indicators | ||
| Dimension | ≤185×135×63mm(include the interface) | |
| Equipment Weight | ≤2Kg | |
| Protection degree | IP65 | |
| Working temperature | -40℃～+65℃ | |
Q1. Can I have a sample order for wireless data Links?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.
Customized one will based on the requirements and quantity.
Q3. Do you have any MOQ limit for Unmanned System Radio?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
|
