Environmental Test Chambers DIN50021 Salt Spray Corrosion Test Chamber 120x100x50 B-SST-90 lab Machine

Environmental Test Chambers DIN50021 Salt Spray Corrosion Test Chamber 120x100x50 B-SST-90 lab Machine

Introduction:

Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Corresponding Standard:

GB11158 GB10589-89

GB10592-89

GB/T10586-89

GB/T2423.22-2001

GB/T2423.1-2001

GB/T2423.2-2001

GB/T2423.3-93

GB/T2423.4-93

ASTM D1735

IEC60068-2-1.1990

IEC60068-2-2.1974

IEC 68-2-30

IEC68-2-03

EIA - 364-31C

EIA - 364-59

ASTM B117

• operational approach:

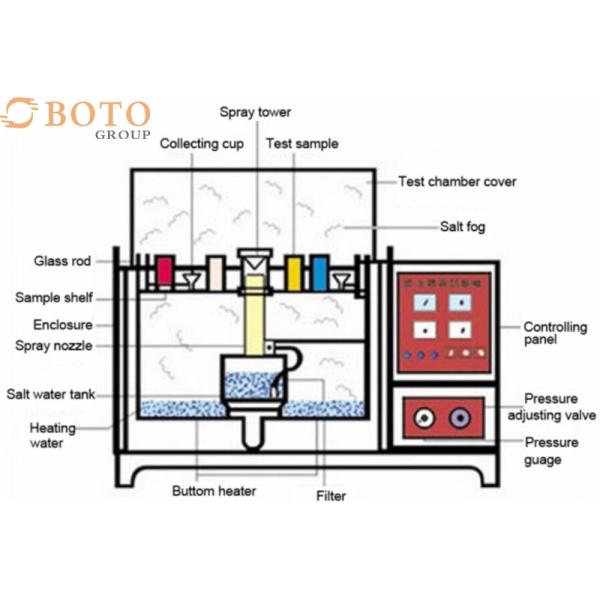

1. Install the internal parts of the salt spray test chamber: tower spray device, funnel, round rod, V-shaped sample rack, etc.

2. Connect the air source, turn on the power switch after the power supply is connected.

3. Add water in the pressure barrel and the box, stop adding water after the two low water level lights are off, and add water to seal the sealing groove.

4, the purified water and sodium chloride salt in a ratio of 1:20. Pour the prepared solution into the test inlet (turn off the light of low salt water).

Product Features:

1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.

2, Reservoirs with mixing system on stand.

3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

4, Exposure zone lined with corrosion-resistant PVC sheets.

5, Clear cover allows viewing of test conditions.

6, Peaked cover prevents dripping of condensation onto samples.

7, Water seal and water level protection system.

8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.

9, Automatic DI water fills to humidifying tower.

10, Digital temperature control.

11, Integral over-protection on heaters.

12, Low water cut-off protection on humidifying tower.

product description:

Our Company:

Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.

With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.

Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001

Packing/Shipping:

Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair

Packaging Dimensions: (WxDxH) 1610*1050*1400mm

Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)

Gross Weight: 150kg

HS Code: 8479899990
