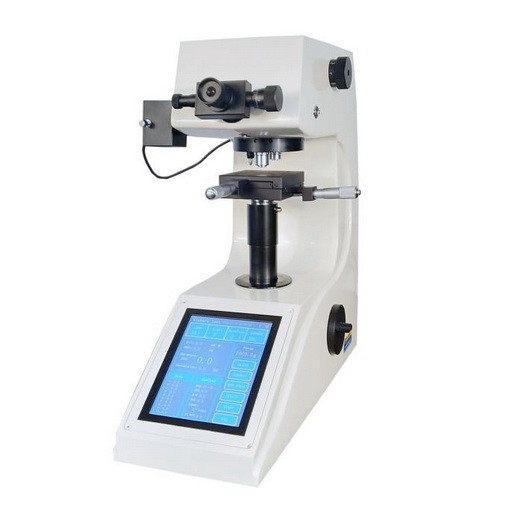

Touch Screen Auto Turret Micro Vickers Hardness Tester with Mass Data Saving

Touch Screen Auto Turret Micro Vickers Hardness Tester with Mass Data Saving

Model: HV-1000ATHY

Technical Data Download:
iqualitrol Touch-screen Auto Turret Micro Vickers Hardness Tester HV-1000ATHY

Product Features:

● The new iqualitrol HV-1000ATHY Touch-screen auto turret micro vickers hardness tester, adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report;

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;

● Equipped with automatic turret function, HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error；

● Convenient control system can automatically convert the unit of full hardness scale;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

●With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.

Technical Specifications:

Standard Delivery:
