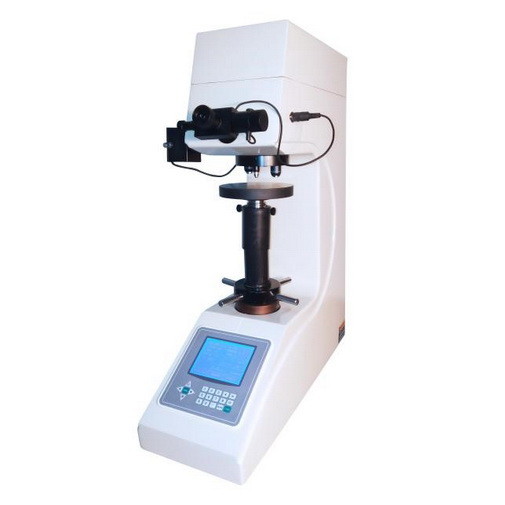

Digital Eyepiece Auto Turret Vickers Hardness Tester with closed loop Sensor Loading

Digital Eyepiece Auto Turret Vickers Hardness Tester with closed loop Sensor Loading

Model: HVS-5AEHY

Brief Introduction:
Iqualitrol HVS-5/10/30/50AEHY digital display automatic turret Vickers hardness tester, using high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation;

The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

Closed-loop electric charging is adopted, with overload and over-position automatic protection functions; the test process is automated, and there is no human error in operation;

Equipped with automatic turret function, high-resolution measurement and observation objective lens, combined with high-definition digital micrometer eyepiece with built-in length encoder, it realizes one-key measurement of indentation diagonal line, eliminating human operation interference and reading errors;

Convenient operating system, which can automatically convert the unit of the full hardness scale;
The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

The precision complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.

Technical Specifications:

Accessories Box:
