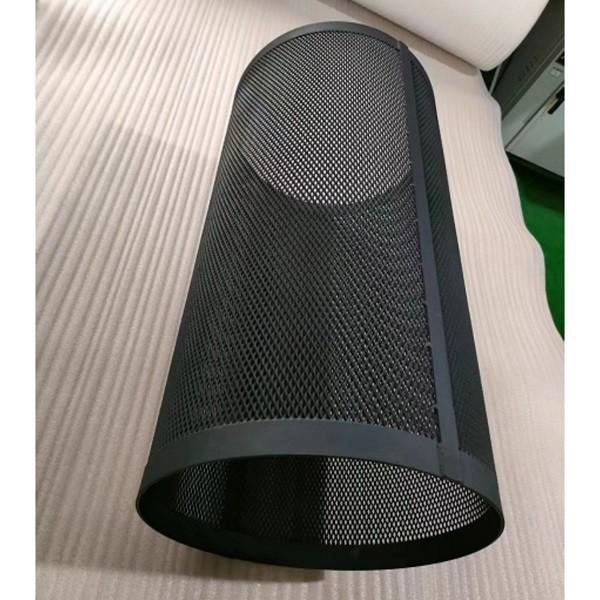

Titanium Coated Mesh For Anode Titanium Mesh Anode

Product Overview

Titanium Coated Mesh for Anode is a high-performance anode material widely used in electroplating, electrolysis, and water treatment applications.
It combines the superior corrosion resistance of titanium with the excellent electrochemical performance of noble metal oxide coatings.
This product offers long service life, high current efficiency, energy savings, and environmental protection, making it an ideal choice for modern electrolytic systems.

We can manufacture and supply various types of titanium-based anodes according to customer requirements, including titanium mesh, ribbon, sheet, rod, tube, and plate anodes.

Titanium Substrate Composition

Available Coating Types

Typical Characteristics of Titanium Mesh Anode

Coating composition: Mixed Ruthenium and Iridium

Chlorine evolution potential: < 1.13 V

Polarizability: ≤ 40 mV

Accelerated life test: ≥ 3000 min at 1000 A/m²

Anode weight loss: ≤ 10 mg

Suitable working medium: Chloride-containing solution, pH ≤ 7

Coating Loading & Service Life

Recommended Working Parameters

Current density: < 600 A/m²

Operating temperature: 40–60°C

Chlorine concentration: 30–50 g/L

Polarity reversal: Suitable

Reversal frequency: Every 2–4 hours

Regular Sizes Available

Applications

1. Water Electrolysis & Ionisers

   Production of alkaline and acidic water

2. Wastewater Treatment

   Organic and chemical wastewater treatmentPesticide and dye wastewater treatment
3. Drinking water disinfection
4. Swimming pool and spa water purification
5. Hospital and food industry sanitation

6. Sodium Hypochlorite & Chlorine Generators

   Swimming pool disinfection
7. Water sterilisation and purification

8. Seawater Electrolysis & Electrodialysis

   Desalination and fresh water production
9. Resource recovery from wastewater
10. Paper, chemical, medical, and light industries

11. Chlor-Alkali Industry

    Electrolysis of brine for chlorine and caustic soda production

12. Electroplating Industry

    Used for plating Au, Cr, Zn, Cu, and other metals

Key Benefits

Excellent corrosion resistance and long operating life

High current efficiency and stable performance

Low overpotential and reduced energy consumption

Environmentally friendly — no toxic by-products

Customizable coating type, mesh size, and dimensions
