Categories Carbon Sulfur Analyzer
Brand Name: WUWAY
Model Number: WW-CS2002D
Place of Origin: China
MOQ: 1 pc
Payment Terms: T/T
Supply Ability: 20 + pcs + per month
Delivery Time: 15 work days
Packaging Details: wood box

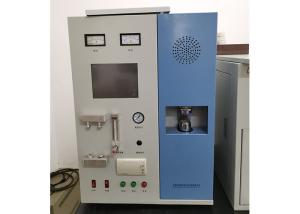

name: Arc Furnace Infrared Carbon and Sulfur Analyzer
analysis channels: 20 analysis channels and 100 release curves
Analysis time: 25-60s (normally 35s)
Measurement range: carbon ω (C) 0.001% ~ 10.0000% sulfur ω (S) 0.0001% ~0.3500%
Working environment: Indoor temperature: 10℃～30℃ Relative humidity: 75%
Analytic error: meet standard: C: GB/T223.69-97 S: GB/T223.68-97
Contact Now
Company Info.
WUXI WUWAY INSTRUMENT CO., LTD.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Scale Linearization Calibration Carbon Monoxide Analyzer Real Time Data Dynamic Display

Description
It is mainly used for the determination of the mass fraction of carbon and sulfur in other metal materials such as carbon steel, alloy steel and stainless steel.
Software features
1. WINDOWS XP color surface, clear interface, easy to operate.
2. The standard curve can be adjusted automatically or manually.
3. Linear data in the linear table can be corrected for high, medium and low linear data.
4. Signal tracking throughout, automatic adjustment.
5. Independent infrared analysis software, full-featured, with more than forty functions such as channel selection, data statistics, breakpoint correction, result correction, system detection, system diagnosis.
6. Dynamic display of real-time data and carbon and sulfur release curves of the analysis process.
7. 20 analysis channels are available (10 channels for carbon and sulfur), and can be arbitrarily matched with a wide selection range.
8. 100 carbon and sulfur release curves (50 each), stored at any time, and compare carbon and sulfur release curves at any time.
9. Analytical gas flow is controlled by high-precision flowmeter, and the analysis results are more stable and reliable.
10. Full-scale linearization calibration technology, single-point and multi-point calibration, improve the linearity of the system and the correctness of the analytical data.
11. It can communicate with the data center or the pre-furnace report.
12. The international brand's electronic balance is not quantitatively sampled.
13. Can communicate with any brand of computer
main specifications
Measurement range C: 0.001%～10.0000%( can extend to 99.9999%)
S: 0.0001%～0.35000%( can extend to 99.9999%)
Analysis time 25-60s (normally 35s)
Analytic error meet standard: C: GB/T223.69-97 S: GB/T223.68-97
Working environment Indoor temperature: 10℃～30℃
Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Electric pressureAC220V±5%, frequency 50HZ±2%
Measurement range
C: 0.001%～10.0000%( can extend to 99.9999%)
S: 0.0001%～3.5000%( can extend to 99.9999%)
Analysis time25-60s (normally 35s)
Analytic error

C: GB/T223.69-97

S: GB/T223.68-97

Working environmentIndoor temperature: 10℃～30℃
Relative humidity: 75%
Instrument features

1. Detecting carbon and surlfur simultaneously
2. Signal tracking throughout, automatic adjustment.
3. The modular design of the hardware has low failure rate, good stability and accurate and reliable test results.
4. Analytical gas flow is controlled by high-precision flowmeter, and the analysis results are more stable and reliable.
5. High-speed ignition furnace high-frequency high-voltage spark circuit has made innovations and improvements, and eliminated the original vacuum spark relay.

Through tens of thousands of experiments and several users, the performance is very reliable. This innovative improvement is the first of its peers.
6. The electric arc furnace non-contact high-frequency high-pressure spark automatically tracks the arc, which has the functions of material saving, power saving and no

heat radiation.
7.Using ultra-microporous "non-blocking" type metal filter and double-dusting design of absorbent cotton

main applications
Arc furnace infrared carbon-sulfur analyzer combined with electric arc furnace can quickly and accurately determine copper-iron, alloy, non-ferrous metals, rare earth metals, cement, ore, coke, coal, slag, ceramics, catalysts, foundry core sand, iron ore, inorganic materials And the mass fraction of carbon and sulfur in other materials.
