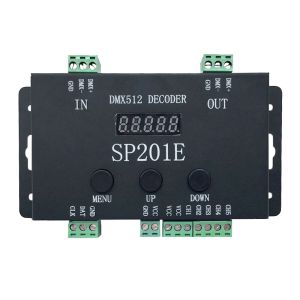

Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control

Categories LED DMX Decoder
Place of Origin: China
Packaging Details: 3 layers of safety packaging
Price: $12.85/pieces
Model Number: LED DMX512 decoder
Certification: CE
Warranty(Year): 1-Year
Lighting solutions service: Lighting and circuitry design, Project Installation
Type: DMX512 Decoder
Max. Load Power: 1024 pixels
Product name: SP201E
Application: DMX Lighting Solution
Input Voltage: DC5V-24V
Output signal: SPI Signal
Built-in pattern: 99 kinds
Control mode: Button control, 512 console control
Support IC: Support common LED driver ICs on the market
Keyword: DMX512 Decoder controller Magic Light Belt
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control

DMX512 Decoder Controller SP201E SPI Signal Addressable IC RGB Pixel 5 Channel Output

Description - Text Version

DC5V-24V DMX512 Decoder controller SP201E

Product introduction:
1. DC5-24V wide voltage power supply, the power supply has anti-reverse connection function;
2. IC/self-contained mode/speed/decoding channel can be adjusted, and the digital tube can display it intuitively;
3. Real-time automatic identification of DMX512 signal, plug and play, user-friendly operation;
4. Decoding supports phantom lamps, colorful lamps, adjustable channels, and dual control at the same time;
5. Single offline control or multiple synchronous cascading two working modes;
6. It comes with 99 kinds of pattern effects, dazzling and agile;
7. Each unit supports up to 2000 decoding channels;
8. Power down to save user settings;
Specification:
item
value
Lighting solutions service
Lighting and circuitry design, Project Installation
Product Weight(kg)
0.32
Place of Origin
China
Guangdong
Brand Name
Lebeisenf
Type
DMX512 Decoder
Max. Load Power
1024 pixels
Connection Mode
common anode
Product name
SP201E
Application
DMX Lighting Solution
Input Voltage
DC5V-24V
Output signal
SPI Signal
Control capacity
1024 pixels
Built-in pattern
99 kinds
Control mode
Button control, 512 console control
Working temperature
20-60
Support IC
Support common LED driver ICs on the market
Working current
24mA-110mA
Product Description

Product wiring application diagram

1. The wiring diagram of a single decoder running its own pattern effect:
2. Wiring diagram of external DMX512 signal for a single decoder:
3. Wiring diagram for connecting multiple decoders in cascade with external DMX512 signals:
