| Categories | Amplifier IC Chips |
|---|---|
| Brand Name: | ADI |
| Model Number: | AD623ARMZ-REEL7 |
| Place of Origin: | original |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 999999 |
| Delivery Time: | 1-3 days |
| Packaging Details: | standard |
| Amplifier Type: | Instrumentation |
| Slew Rate: | 0.3V/µs |
| Gain-3db Bandwidth: | 800 kHz |
| Current - Input Bias: | 17 nA |
| Voltage - Input Offset Offset: | 200 µV |
| Voltage - Supply Span (Min): | 375µA |
AD623ARMZ-REEL7 8-MSOP Package Operational Amplifier IC Chip for High Precision Signal Processing and Amplification
Amplifier Type | ||
Number of Circuits | 1 | |
Output Type | Rail-to-Rail | |
Slew Rate | 0.3V/µs | |
-3db Bandwidth | 800 kHz | |
Current - Input Bias | 17 nA | |
Voltage - Input Offset | 200 µV | |
Current - Supply | 375µA | |
Voltage - Supply Span (Min) | 2.7 V | |
Voltage - Supply Span (Max) | 12 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | ||
Package / Case | ||
Supplier Device Package | 8-MSOP |

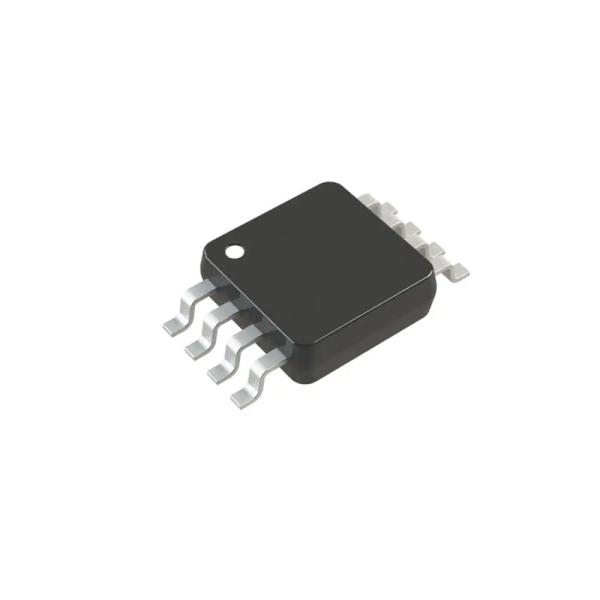

ADI AD623ARMZ-REEL7 8-MSOP Amplifier IC Chip
Product Type: Amplifier IC Chip
Manufacturer: Analog Devices (ADI)
Part Number: AD623ARMZ-REEL7
Package: 8-MSOP
Features:
• Low Cost, High Performance
• Low Noise
• Low Offset Voltage
• Wide Range Of Gain Options
• High Common-Mode Rejection Ratio
• Wide Power Supply Range (±2.5V to ±18V)
• High Output Voltage Swing (0V to VCC_1)
• Low Input Bias Current
• Low Input Offset Voltage
• Low Supply Current
• High Output Current Drive
• Low Input Offset Voltage Drift

|
