| Categories | Ustc Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | 0.2x200 |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Place of Origin: | China |
| MOQ: | 20Kilogram/Kilograms |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Diameter: | 0.20mm |
| Temperature: | 155 |
| Certificate: | IEC/NEMA/JIS/RoHS/ISO |
| AWG SIZE: | 41 |
| Conductor: | Copper |
| Strands: | 200 |
| Breakdown voltage: | 9000v |
| Insulation: | 2UEW |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

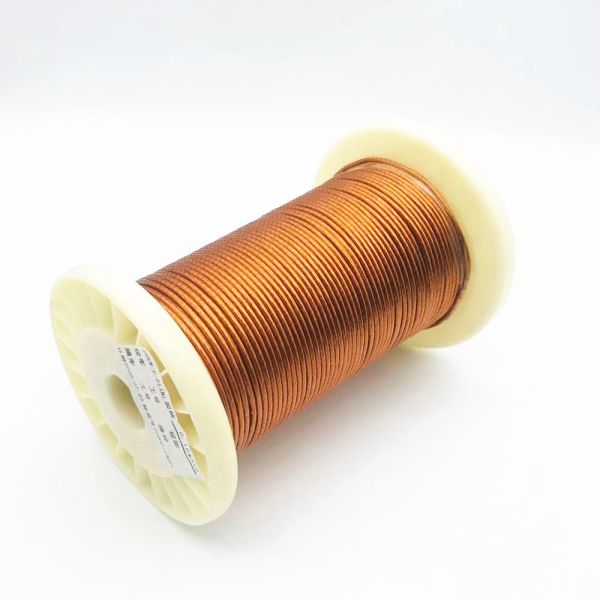

0.20MM DIAMETER TAPED COPPER LITZ WIRE 0.2*200 HIGH FREQUENCY ENAMELED WIRE
Litz wire is a type of cable used in electronics to carry alternating current. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz. It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns, often involving several levels (groups of twisted wires are twisted together, etc.). The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor, an effect not achieved with simple twisted-strand hookup wire.
SPECIFICATION
Characteristics | Technical requests | Test Results | Conclusion | ||||
Sample | ok | ||||||
1 | Surface | Good | OK | ok | |||
2 | Breakdown Voltage | ≥6800V | 9160 | ok | |||
3 | Pinhole Test | ≤ 20 hole/6m | 0 | ok | |||
4 | Outer diameter | ≤ 0.226 mm | 0.221 | ok | |||
5 | Inner diameter | 0.2±0.003 mm | 0.2 | ok | |||
6 | Thickness of Mylar film(+0.002mm) | 0.008 mm | 0.009 | ok | |||
7 | Overlapping Ratio | >33% | 50% | ok | |||
8 | Direction | Bunch | Left | OK | ok | ||
Film cover | Left | OK | ok | ||||
9 | Conductor Resistance | ≤ 2.913Ω/km | 2.462 | ok | |||
10 | Pitch | 68±3 mm | 70 | ok | |||
Remark: | Conclusion: | ||||||
Approved | |||||||
|
