| Categories | Ultra Fine Enameled Copper Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | 0.011-0.8mm |
| Certification: | ROHS/UL/SGS/ISO9001:2008 |
| Place of Origin: | China |
| MOQ: | Different types with differet MOQ |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Color: | Nature/Red/Pink |
| Insulation: | UEW/PEW/AIW/EIW |
| Thermal class: | 130-220 |
| Size range: | 0.011-0.8mm |
| Material: | Copper |
| Shape: | Round |
| solderability: | Yes |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

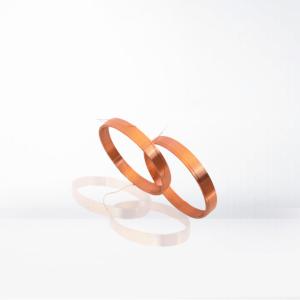

ROUND ULTRA FINE COPPER WIRE 0.012-0.8MM HIGH RESISTACNE TO ABRASION
We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
FEATURE AND BENEFITS
* Excellent thermal stability, excellent dielectric and mechanical
properties.
* Very good chemical resistance to common solvent and coolants.
* Better sliding during coil insertion in slots (reduced friction
factor).
* High resistance to abrasion.
Qualiy similar to Elektrisola.
<
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
|
