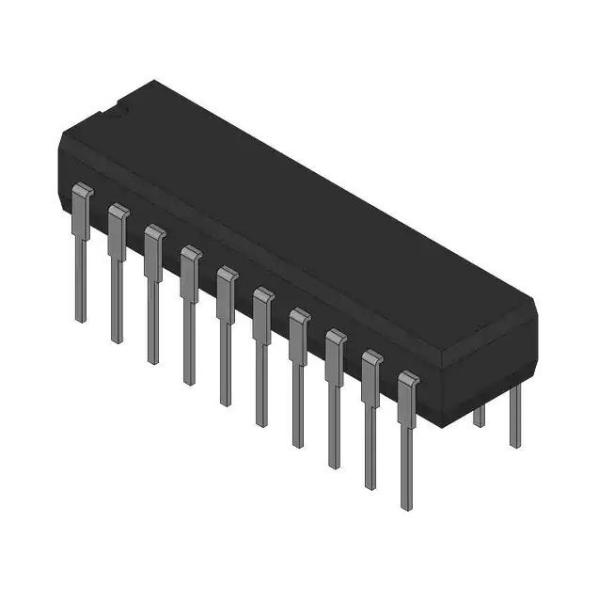

CY54FCT245ATDMB IC Chip 1 Element 8 Bit Per Element 3-State Output 20 CDIP

CY54FCT245ATDMB IC Chip 1 Element 8 Bit per Element 3-State Output 20-CDIP

Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-CDIP

Specifications of CY54FCT245ATDMB

Features of CY54FCT245ATDMB

* Function, Pinout, and Drive Compatible With FCT and F Logic
* Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
* Edge-Rate Control Circuitry fo Significantly Improved Noise Characteristics
* Ioff Supports Partial-Power-Down Mode Operation
* ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
* Matched Rise and Fall Times
* Fully Compatible With TTL Input and Output Logic Levels
* CY54FCT245T
– 48-mA Output Sink Current
12-mA Output Source Current
* CY74FCT245T
– 64-mA Output Sink Current
32-mA Output Source Current
* 3-State Outputs

Descriptions of CY54FCT245ATDMB

The ’FCT245T devices contain eight noninverting bidirectional buffers with 3-state outputs and are intended for bus-oriented applications.
The transmit/receive (T/R) input determines the direction of data flow through these bidirectional transceivers.

Transmit (active high) enables data from A ports to B ports. The output enable (OE), when high, disables both the A and B ports by putting them in the high-impedance state.

These devices are fully specified for partial-power-down applications using I off. The I off circuitry disables the
outputs, preventing damaging current backflow through the device when it is powered down.
