| Categories | Universal Testing Machine |
|---|---|
| Model Number:: | ZL-8001 |
| Power:: | Electronic |
| Max load:: | 5KN,10KN,20KN |
| Accurate grade:: | 1 % /0.5 % |
| Effective measuring range:: | ing range: 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Brand Name: | Zhongli |
| Model Number: | ZL-8001 |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 10 days after order |
| Packaging Details: | 20KN Electronic Universal Testing Machine Two Column Servo Type is packaged within wooden case. |
| Effective testing width:: | 390mm |
| Measuring accuracy:: | Display the value ±1%/Display the value ±0.5% |
| Effective Tensile strock:: | 800mm;1000mm;1200mm |
| Company Info. |
| Dongguan Zhongli Instrument Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

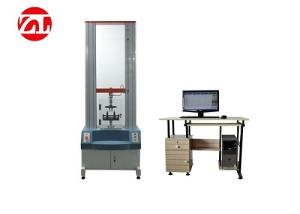

The ZL-8001 2T Computer Universal Testing Machine combines electronic technology with mechanical transmission for precise material testing. This equipment features accurate load speed control, comprehensive force measurement range, and high-precision load and displacement measurement capabilities. It supports constant-velocity loading and displacement testing, with simple operation ideal for quality control in production environments. Designed for testing both metallic and non-metallic materials with loads under 1 ton.
Download Technical Specifications PDFGB/T16491-1996 Electronic Universal Testing Machine Standard
| Parameter | Specification |
|---|---|
| Model | ZL-8001 2T Computer Universal Testing Machine |
| Maximum Load | 5KN, 1 ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100% (1 grade) / 0.4%~100% (0.5 grade) |
| Measuring Accuracy | Display value u00b11% / Display value u00b10.5% |
| Tester Resolution | Max load 1/200,000, constant resolution |
| Effective Testing Width | 390mm (customizable) |
| Effective Tensile Stroke | 800mm, 1000mm, 1200mm (customizable) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Displacement Measurement Accuracy | Tolerance: u00b10.5% / u00b10.2% |
| Deformation Measurement System | Min span: 10mm, Max range: 800mm |
| Safety Features | Electronic limit protection, Overload protection (10% automatic) |
| Power System | high-performance AC Servo Motor + Driver + high-precision ball screw |
| Power Supply | 220V, 50HZ, 0.4kw |
| Machine Dimensions | 80*55*220cm (L*W*H) |
| Machine Weight | 250kg |
| Units | Kg, N, LB, TON (interchangeable) |
