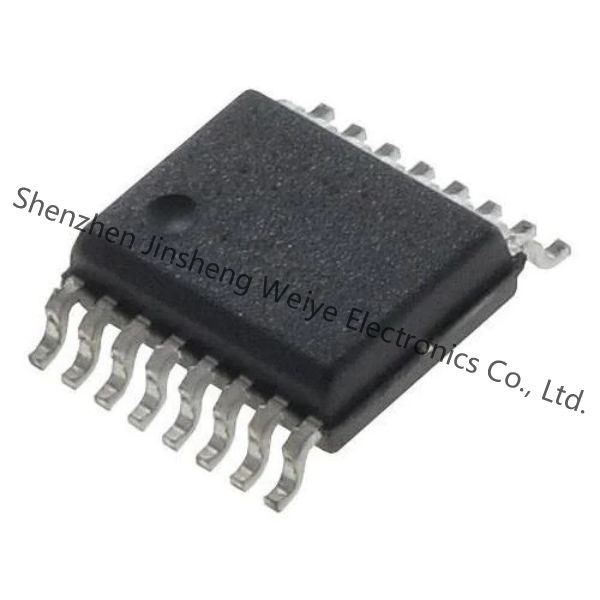

MAX534AEEE Digital to Analog Converters - DAC +5V, Low-Power, 8-Bit Quad DAC with Rail-to-Rail Output Buffers

MAX534AEEE Digital to Analog Converters - DAC +5V, Low-Power, 8-Bit Quad DAC with Rail-to-Rail Output Buffers

MAX534AEEE Digital to Analog Converters - DAC +5V, Low-Power, 8-Bit Quad DAC with Rail-to-Rail Output Buffers
MAX534AEEE Digital to Analog Converters - DAC +5V, Low-Power, 8-Bit Quad DAC with Rail-to-Rail Output Buffers
Categories Data Converter IC
Brand Name: Maxim Integrated
Model Number: MAX534AEEE
Certification: ROHS
Place of Origin: Call
MOQ: Contact us !
Price: Contact us !
Payment Terms: Paypal, Western Union, TT
Supply Ability: 50000 Pieces per Day
Delivery Time: Send email to learn lead time
Packaging Details: Standard package
Product Name: MAX534AEEE
Condition: Original 100%
Installation methodpe: DAC String DAC SPI -40°C ~ 85°C 8μs (Typ) 16-QSOP
Package: 16-SSOP (0.154", 3.90mm Width))
Voltage - Supply: International standard
Max. Reverse Current: International standard
Application: Digital to Analog Converters (DAC)
Contact Now
Company Info.
Shenzhen Jinsheng Weiye Electronics Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MAX534AEEE Digital to Analog Converters - DAC +5V, Low-Power, 8-Bit Quad DAC with Rail-to-Rail Output Buffers

MAX534AEEE Datasheet

Product Details

General Description

The MAX534 serial-input, voltage-output, 8-bit quad digital-to-analog converter (DAC) operates from a single +4.5V to +5.5V supply. Internal precision buffers swing rail to rail, and the reference input range includes both ground and the positive rail. The MAX534 features a 2.5µA shutdown mode.

Features

♦ +4.5V to +5.5V Single-Supply Operation
♦ Ultra-Low Supply Current:
0.8mA while Operating
2.5µA in Shutdown Mode
♦ Ultra-Small 16-Pin QSOP Package
♦ Ground to VDD Reference Input Range
♦ Output Buffer Amplifiers Swing Rail to Rail
♦ 10MHz Serial Interface Compatible with SPI, QSPI (CPOL = CPHA = 0 or CPOL = CPHA = 1), and
Microwire
♦ Double-Buffered Registers for Synchronous Updating
♦ Serial Data Output for Daisy Chaining
♦ Power-On Reset Clears Serial Interface and Sets All Registers to Zero
♦ Software Shutdown
♦ Software-Programmable Logic Output (µC I/O Extender)
♦ Asynchronous Hardware Clear Resets All Internal Registers to Zero

Applications

Digital Gain and Offset Adjustments
Programmable Attenuators
Programmable Current Sources
Portable Instruments

Specifications

AttributeAttribute Value
ManufacturerMaxim Integrated
Product CategoryDigital to Analog Converters (DAC)
Series-
PackagingTube
Package-Case16-SSOP (0.154", 3.90mm Width)
Operating-Temperature-40°C ~ 85°C
Output-TypeVoltage - Buffered
Supplier-Device-Package16-QSOP
Data-InterfaceSPI
Number-of-Bits8 Bits
Voltage-Supply-Analog5V
Voltage-Supply-Digital5V
ArchitectureString DAC
Reference-TypeExternal
Number-of-D-A-Converters4
Settling-Time8μs (Typ)
Differential-OutputNo
INL-DNL-LSB±1 (Max), ±1 (Max)

Descriptions

8 Bit Digital to Analog Converter 4 16-QSOP

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
