| Categories | Leak Testing Equipment |
|---|---|
| Brand Name: | HJ |
| Certification: | Third party calibration certificate(cost additional) |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiatable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3 set per 3 month |
| Delivery Time: | 90 days |
| Packaging Details: | Plywood |
| test sample: | heating tank |
| Vacuum chamber: | 1 chamber |
| Gas for Fine Leak Test: | Helium |
| Alarm leak rate: | 5x10-5mbar.L/s |
| cycle time: | 1 piece/min |
| Helium Recovery: | ≥95% |
| Test Cycle: | Automatic |
| Application: | heating tank helium leak test system |
| Company Info. |
| HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

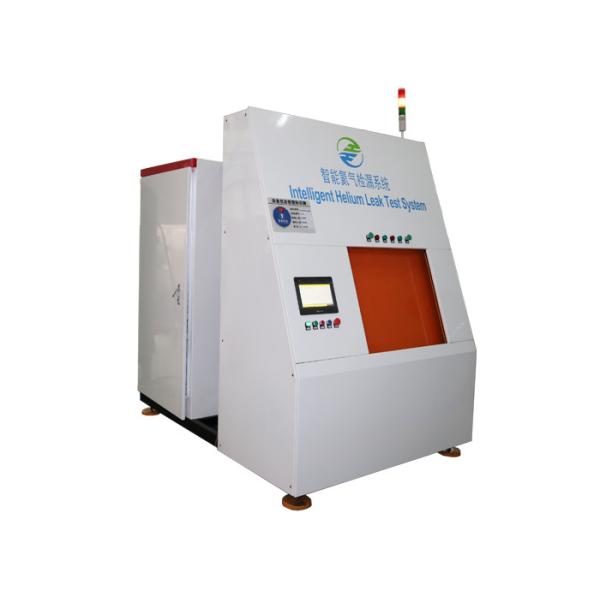

Helium Leak Testing Machine With High-Precision Leak Detector
Parameter:
| Workpiece | Heating tank. Leak Testing Equipment |
| Vacuum chamber | 1 chamber, 2 work pieces can be tested at the same time |
| Chamber size | L700mm*W300mm*H600mm |
| Maximum workpiece size | Ø240*400 |
| Quick coupling in vacuum chamber | 2 sets |
| Gas for Gross Leak Test | Compressor air (0.8Mpa), down adjustable Detection of gross leakage point by soaking water method |
| Gas for Fine Leak Test | Helium(0.8Mpa), down adjustable Sniffer check leak point |
| Actual leakage rate | 5x10-4mbar.L/s |
| Alarm leak rate | 5x10-5mbar.L/s |
| Equipment maximum accuracy | 5x10-6mbar.L/s |
| production efficiency | 1 minute / piece (loading and unloading time is Not included) |
| Helium Recovery | Recovery Rate ≥95% |
| Test Cycle | Automatic |
| Loading and unloading of products | Manual |
Accuracy guarantee:
The machine is provided with standard leak, which is certified by China National Measuring Institute.
Leak detector self-calibration: the helium leak detector has internal standard leak, and has auto-calibration function. As required, can start the leak detector self-calibration for sensibility and accuracy. Leak Testing Equipment
Test flow:

|   |
