Forest Farm Indoors Hydraulic Crawler Excavator 191/1800N*M/Rpm

Categories	Hydraulic Crawler Excavator
Brand Name:	CIVL
Model Number:	CIVL
Certification:	ISO,CCC
Place of Origin:	China
MOQ:	1
Engine rated Power:	40.9/2,100kW/rpm
Engine model:	4JG1-NABGB-04-C2
Engine max.torque:	191/1800N*m/rpm
Arm cylinders bore X stroke:	90×900mm
Overall weight:	7280kg
Bucket digging force:	56kN
Delivery Time:	Within 35 days

Contact Now

Add to Cart

Company Info.

SINO VEHICLE & EQUIPMENT COMPANY LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

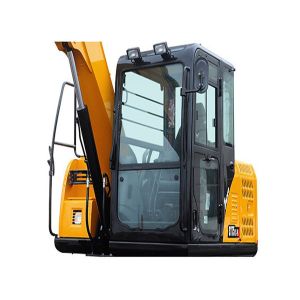

Forest Farm Indoors Hydraulic Crawler Excavator 191/1800N*M/Rpm

Advanced engine and hydraulic system

Super powerful engine combines with the new electrical positive flow hydro-system makes the excavator worked with high-efficiency and well adapted to different operating conditions.

Durable and reliable

With reinforced working device and high-strength swing plant, construction components' life span are improved 30%.

High Efficiency

Accurate and adjustable flow control makes the excavator worked faster and more efficiently.

Transport length6120mm

Transport width2220mm

Transport height2720mm

Upper body width2040mm

Std. track shoe width450mm

Track gauge1750mm

Min. ground clearance380mm

Tail swing radius1800mm

Roller gauge2195mm

Track length2820mm

Track height680mm

Operator eye level2295mm

Cab top length1515mm

Tail length1040mm

Counterweight ground cleararice790mm

Length (without working device)3095mm

Ground length (transportation)3735mm

Counterweight clearance1715mm

Blade height405mm

Max. digging height7060mm

Max. dumping height5155mm

Max. digging depth4020mm

Max. vertical digging depth3290mm

Max. digging reach6240mm

Min. swing radius1720mm

Boom height at min.swing radius5550mm

Max. ground clearance of Bulldozer blade350mm

Max. sinking depth of bulldozer blade360mm

Engine model4JG1-NABGB-04-C2

Engine rated power40.9/2,100kW/rpm

Engine max.torque191/1800N*m/rpm

Engine displacement3.059L

Engine start motor24/3.2V/kw

Engine generator30V/A

Boom cylinders bore X stroke110×885mm

Arm cylinders bore X stroke90×900mm

Bucket cylinders bore X stroke80×730mm

Bulldozer blade cylinders bore X stroke130×145mm

Overall weight7280kg

Bucket capacity0.28m3

Bucket digging force56kN

Arm digging force38kN

Tractive force58kN

Travel speed (high/low)4.4/2.4km/h

Swing speed11.5rpm

Gradeability70%/35°

Ground pressure33kPa

Fuel tank capacity150L

Hyd tank capacity120L

Engine oil capacity9.6L

Engine coolant capacity6.5L

Final drive capacity2×1.2L

Track shoes(per side)39

Carrier roller(per side)1

Lower roller(per side)5

Boom length3.72m

Arm length1.62m

Bucket capacity (optional)0.16/0.38m3
