| Categories | USB Camera Module |
|---|---|
| Brand Name: | Sinoseen |
| Model Number: | SNS-PC987M-V1 |
| Certification: | RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
| Delivery Time: | 2-3weeks |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Type: | USB camera module |
| Sensor: | 1/2.8"SONY IMX415 |
| Resolution: | 8MP (3840*2160) |
| Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 100°(optional) |
| Focus Type: | Auto focus |
| Interface: | USB2.0 |
| Feature: | Remote control |
| Company Info. |
| Shenzhen Sinoseen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

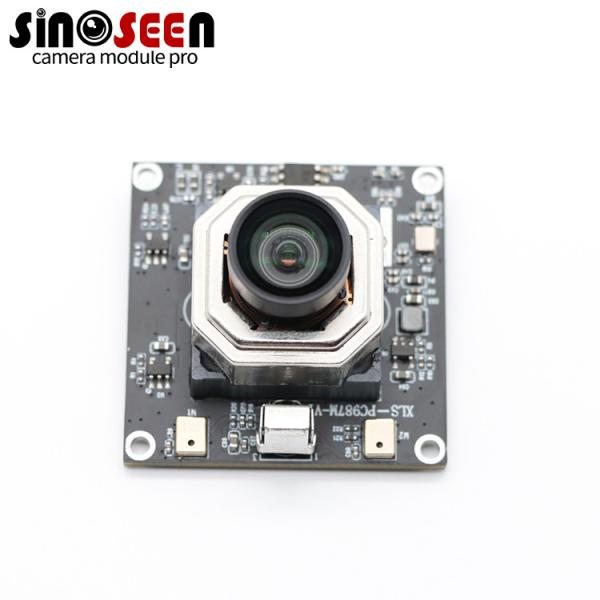

8MP HDR 4K USB Camera Module Motorized Zoom In And Out Remote Control
Remote Control Motorized Zoom In And Out Left Right 8MP HDR 4K USB Camera Module
HDR 4K USB Camera Module
This is a camera module designed for applications requiring high-quality imaging. It offers 8-megapixel high-resolution image capture for sharp and detailed imaging. It also supports 4K video recording at 30 frames per second, making it ideal for video applications.
The HDR (High Dynamic Range) feature enhances the camera's ability to capture images in environments with varying brightness levels. This feature provides better image quality when there are bright and dark areas in the same scene.
The camera module also has a motorized zoom lens, which can remotely control the zoom function of the camera. This feature is especially useful in applications such as video conferencing, where the camera may need to zoom in on specific areas or people.
The camera module connects to a host device using a USB interface, allowing easy integration into a variety of systems. Its compact and lightweight design is suitable for use in small devices or embedded systems.
Model No | SNS-PC987M-V1 |
Sensor | 1/2.8’’ SONY IMX415 CMOS |
Pixel | 8 Mega Pixel |
Most effective pixels | 3840(H) x 2160(V) |
Pixel Size | 1.45µm x 1.45µm |
Image area | 3864um (H) x 2196um (V) |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution & Frame rate | See above |
Shutter Type | Electronic rolling shutter |
Focus type | Auto focus |
Chroma | Color, RGB |
Clock Frequency | 6 to 72 MHz |
Microphones | Built-in |
Interface type | USB2.0 |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
Lens | Focal length: 3.6mm |
Lens construction: 5E+IR | |
D FOV: 100 degree | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Operating Voltage | DC 5V |
Operating Current | 260mA |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | 38MMx38MM Customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
|
