| Categories | Silicone Rubber Injection Molding Machine |
|---|---|
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Place of Origin: | Guangdong China |
| MOQ: | 1set |
| Price: | USD 21800-40000one set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
| Delivery Time: | 50days |
| Model Number: | JC-VI-AO |
| Packaging Details: | Fixed with hard straps |
| Clamp Force(Ton): | 50-400 |
| Injection Volume(cc): | 500-4000 |
| Injection Pressure(kgf/cm2): | 1800 |
| Platen Size(mm): | 300*300-700*700 |
| Plunger Diameter(mm): | 250-500 or Customized |
| Min. Mold Thickness(mm): | 50-100 |
| Plunger Stroke(mm): | 300-500 |
| Heating Plates Distance(mm): | 350-600 |
| Tie Bar Distance(mm): | 400*140-820*395 |
| Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Total Power(KW): | 13.9-35 |
| Gross Weight(Ton): | 5.5-10 |
| Model Number: | JC-100VI-AO | Clamp Force: | 100 Ton |
|---|---|---|---|
| Machine Size: | 2400*1650*3200 | Plate Size: | 400*400mm |
| Daylight:: | 400～500mm | Motor Power: | 7.5KW |
| Plate Size:: | 400*400mm | Mold Open Type:: | 2RT |
| High Light: | silicone injection machine,silicone molding machine | ||
The work prcess our machine for lady cup:
1. Use silicone mixing machine to mix solid silicone and chemical agent
2. Cut mixed silicone material into small sheet
3. Put silicone sheet into injection feeding system
4. Heating machine and then inject silicone into the mold
5. Close the mold and wait for vulcanizing
6. Open the mold and pick up finished colorful lady cup
What’s Hydraulic system?
The role of hydraulic transmission system is to achieve injection
molding machine according to the process of the various actions
required to provide power and meet the various parts of the
injection molding machine pressure, speed, temperature and other
requirements. It is mainly composed of hydraulic components and
hydraulic auxiliary components, which pump and motor injection
molding machine is the power source. Various valves control the oil
pressure and flow to meet the various requirements of the injection
molding process.
what items our machine use as main body?
Electrical System
| E-1.PLC Programmble Controller | Japan Mitsubishi |
| E-2.Touch Screen (Human Machine Interface) | Taiwan Panelmaster |
| E-3. Temperature .Controller | Japan OMRON |
| E-4. Operation Switch | Schneider |
| E-5. Magnetic Switch (Motor, Heater) | Schneider |
| E-6. Touch Contactor/ Micro Circuit Breaker | Japan Fuji |
| E-7 solid state relay(SSR) | Taiwan Tian Hao |
100 Ton Machine Paremeter:
Clamping Force:100 ton
Injection Capacity: 500cc
Injection pressure: 1800 kgf/cm²
Operation table size: 400*400mm
Min. Mold Thickness: 50mm
Plunger stroke: 350mm
Daylight: 400～500mm
Distance of Tie bar: 515*230mm
Die sinking type: 2RT
Max. Operating Pressure: 20 Mpa
Motor Power: 7.5KW
Electric Heating Power: 10kw
Total Power: 20.5kw
Gross weight: 6 ton
Dimension: L2400*W1650*H3200mm
Other parameter:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 |
| Injection Capacity | cc | 2000 | 3000 | 4000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 |
| Min. Mold Thickness | mm | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 |
| Distance of Thermo-plate | mm | 500～600 | 500～600 | 500～600 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 |
| Total Power | Kw | 30.3 | 39 | 39 |
| Gross weight | Ton | 7.5 | 9 | 10 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 |
Product Show:
|
Motorcycles Parts Making Machine Vertical Rubber Injection Molding Machine For Rubber Damper
Easy Clear Injection Syringe 200 Ton Automatic Silicone Injection Machine

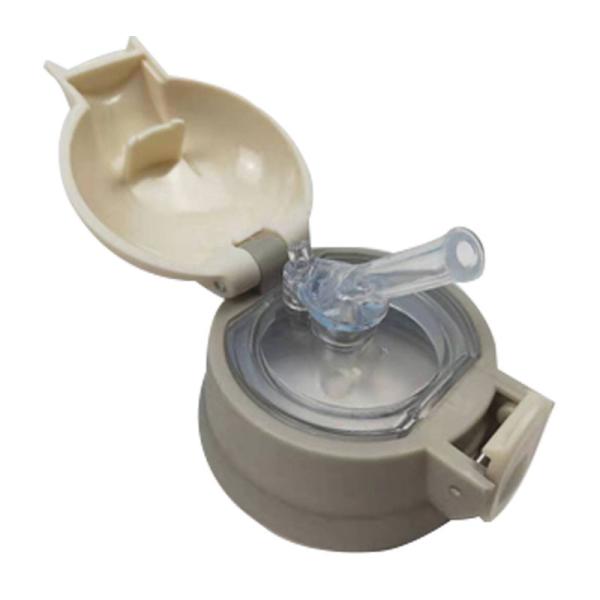

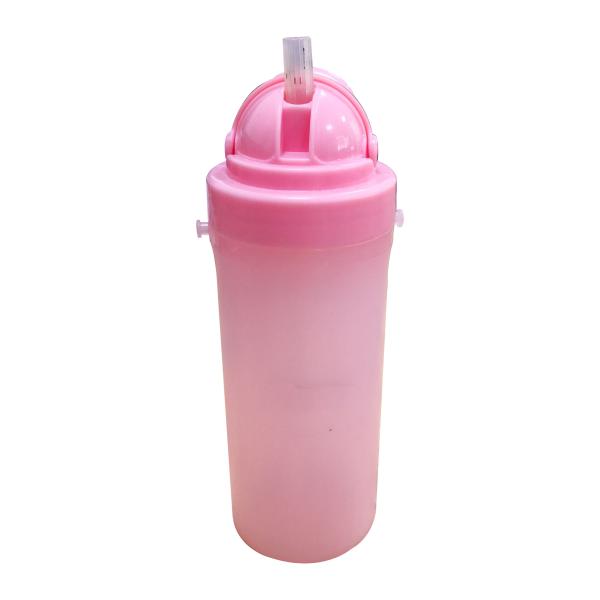

China Factory High Speed Vertical Silicone InjectioCompany Information n Molding Machine for Water Bottle Silicone Part
