W01R584059 Triple Convolutions Firestone Air Bags 10X3 Air Spring Bellows For Industrial

W01R584059 Triple Convolutions Firestone Air Bags 10X3 Air Spring Bellows For Industrial Applications

Product Description:

The air spring is offered by AIRSUSTECH with Part Number 2B10X2T. It has good quality and also one year warranty. It works cross for different numbers in OEM symbol such as M/31103, M31103, FT210-32 DS, FT210-32DS, W01-R58-4059, W01 R58 4059, W01R584059, WO1-R58-4059, and so on.

There are some other OEM Part Numbers, for example, SP 1539, SP1539, 10X3, 10x3, 10''X3, 10''x3, 9109031, 09-909-031.

Features:

• Product Name: Firestone Air Bags
• Warranty: 1 Year
• Lobes: 3 Lobes
• ContiTech OEM Part NO.: FT 210-32 DS
• Air Pressure: 0.2 MPA-0.8 MPA
• Norgen OEM Part NO.: M/31103
• Spring Type: Flange Connection Air Spring
• Quality: High-Quality

Technical Parameters:

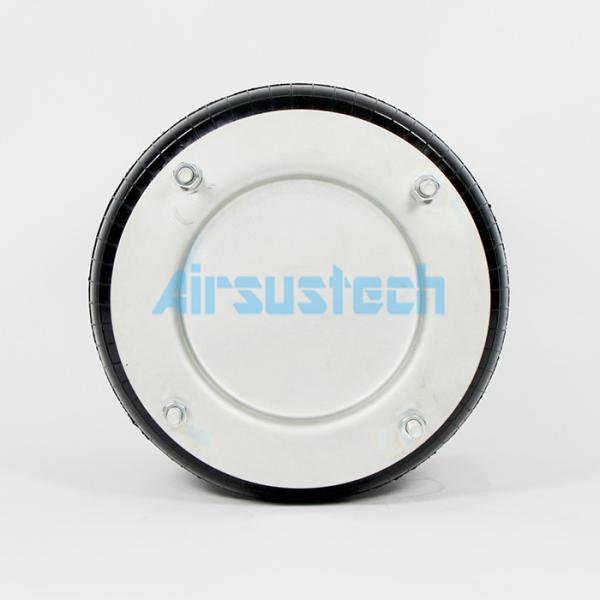

The number of bellows is 3-fold and triple convoluted. Its top plate screw teeth are 4xM10, with a diameter (width) of 181mm, and the bottom cover plate has the same. The air inlet/air connection is of G1/2, 1/2" type. The top plate and bottom cover plate diameter (width) are both 210mm, with its material being steel. Its maximum diameter at 7 bar is80mm, and stroke varies from 100mm to 430mm, requiring an installation space of 300mm. There is no bumper block, but are two belt loops. The OEM NO. listed of GRANNING, WEWELER, SAMRO, FIRESTONE, DUNLOP, CONTITECH, NORGREN and WEFORMA can be found below respectively.

• GRANNING: 15809
• WEWELER: USN 510016D
• SAMRO: H250-0010
• FIRESTONE: W01-R58-4059
• DUNLOP: SP 1539 (10"x 3)
• DUNLOP: SP 1015 (10"x 3)
• CONTITECH: FT 210-32 1/2 M10
• NORGREN: M/31103 (10"x 3)
• WEFORMA: WBD-G 450-25-710

Other Similar Models:

Support and Services:

Firestone Air Bags offers technical support and service for its products.

Our highly trained and experienced customer service team is available 24/7 to answer any questions you may have about our product and provide helpful assistance. Additionally, you can reach our technical support team by phone or email for more in-depth inquiries.

We offer a variety of services to help you get the most out of your product, including installation assistance, troubleshooting, and warranty coverage. We are also proud to offer free online resources and tutorials to ensure you get the best performance from your Firestone Air Bags.

Packing and Shipping:

Packaging and Shipping of Firestone Air Bags:

The air bags should be packaged in a cardboard box with a size of approximately 15x15x5 inches. The box should be marked with the words “Firestone Air Bag” in bold and large font. It should also include a warning label stating “Do Not Exceed Maximum Pressure”. Inside the box, the air bag should be placed in a plastic bag for protection. The bag should be secured with zip ties to ensure the air bag stays in place during transit.

The air bag should be shipped in a sturdy cardboard box using a reliable shipping provider. The box should be marked with the shipping address and a label stating “Fragile – Handle With Care”. It is important to properly secure the box with tape to ensure it stays closed during transit.
