| Categories | Vacuum Suction Cups |
|---|---|
| Brand Name: | AMILA |
| Model Number: | Suction Cups for High-Temperature MW-HT |
| Place of Origin: | CHINA |
| MOQ: | Negotiatable |
| Price: | Negotiatable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiatable |
| Delivery Time: | Depending on the order quantity |
| Packaging Details: | Carton package/Wooden cases |
| Suction area: | 90mm to 190mm |
| Material: | Stainless Steel |
| Highlight 1: | Wear-resistant |
| Highlight 2: | Maximum temperature resistance:600℃ |
| Name: | Vacuum Suction Cups |
| Maximum temperature resistance: | 600℃ |
Vacuum Suction Cups Special For High-Temperature Stainless Steel MW-HT
1. Introduction and applicaton
2. Structure
3. Technology data:
| Type | Suction force | Volume | Min. curve radius | Pressure =-0.7 bar | Weight |
| [N] | [cm3] | [mm](convex) | Required suction 【I/min】 | [g] | |
| MW-HT 35 BL G1/8-IG | 47 | 4 | 90 | 55 | 225 |
| MW-HT 60 BL G1/4-IG | 130 | 12 | 440 | 78 | 375 |
| MW-HT 90 BL G1/4-IG | 320 | 25 | 1060 | 100 | 675 |
| MW-HT 140 BL G3/8-IG | 740 | 50 | 1700 | 120 | 1390 |

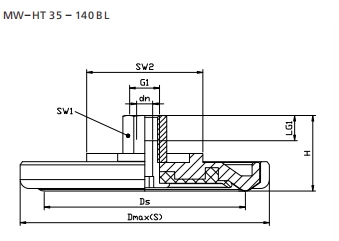

4. Design data:


Suction Cups for High-Temperature MW-HT.pdf
|
