Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications

1U 24FO FDB 19inch ODF-RS-205

Product specifications

Model: ODF-RS-205
Dimension(mm): 430x205x44
Material: cold roll steel
Adapter port: 12-24pcs SC duplex, SC simplex, LC duplex, FC simplex, ST simplex ...
Capacity: 12, 24, 48 fibers
Max. qty of splice tray: 2pcs OST-011 or OST-035
Max. capacity of splice tray: 12 - 24 fibers
Color: black or grey RAL7035
Application: 19inch rack mounted

ODF-RS-205 is a 19 inch 1U 24FO FDB optic fiber distribution box with 12 SC duplex adapter port for rack mounted application.

Features:

Cold roll steel, electrostatic power painting

black color (grey white RAL7035 available)

19 inch rack mounted type

With sliding out tray, inside with max. 2pcs splice tray (Model: OST-011 or OST-035)

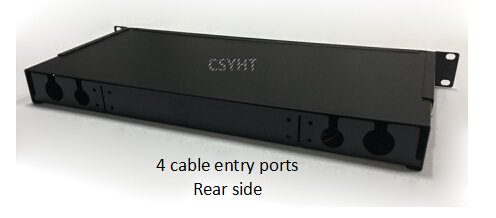

The rear cable ports are suitable for 2pcs M20 and 2pcs M25 cable PG gland

Double layer adapter plate, different adapter port and capacity are customized

Simple structure and easy operation, popular in European market

Accessories:

Heat shrinkable protection sleeve 45mm: 24pcs

Cable ties: 4pcs

Cable guider rings: 4pcs

Cable PG gland M20: 2pcs

Specification:

Model	Dimension	Capacity	Adapter port	Splice tray
ODF-RS-205	W430*D205*H44 (mm)	12, 24, 48 fibers	12 - 24 SC, LC, FC, ST adapter ports	Max. 2pcs splice tray OST-011 or OST-035

Packing information:

Each in one inner box, 5 sets per outside carton,

each carton 55x30x28cm, about 15kgs per carton

Shenzhen YHT Broadband Equipment Co., Ltd. is a professional manufacturer established in 2003. It has 17 years experience in R&D, production and sales of fiber optic products.
Its factory Huizhou YHT Broadband Equipment Co., Ltd. is located in YHT industry park and certified by ISO 9001:2015 management system, ISO 14001:2015 environmental management system, OHSAS 18001:2007 occupational health and safety management system, GB/T 29490-2013 intellectual property management system, TLC etc.

YHT industry park has more than 8 buildings that include YHT hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector & cable assembling workshops.

YHT Hardware Workshop

There are CNC punching, laser cutting, bending, automatic welding ... machines work automatically with high efficiency and precision. YHT can support large production for customized metal ODF, fiber distribution box, optic patch panel, terminal box, cabinet, splitter box etc.

YHT Diemaking Workshop

The mold department has the CNC lathe, the drilling machine, the milling machine, the computer gong, the spark machine, the line cutter etc. for supporting OEM, ODM plastic fiber optic box production.

YHT Injection Moulding Workshop

Many different types injection molding machine support large-scale production of plastic FTTH box, fiber optic splice closure, face plate, splice tray and so on.

YHT Fiber Optic Cable Production Workshop

Support FTTH drop cable, simplex, duplex, 4, 8, 12, 24, 48 ... fiber optic cable production.

YHT Painting Workshop
YHT painting workshop has mechanical automatic and manual spraying equipment for electrostatic powder spraying of metal products.

YHT Assembling Workshop

YHT assembling workshop support loading adapter, pigtail, splitter, splice tray etc. into fiber optic patch panel, box, ODF, cabinet for meeting customer one stop demand.

YHT Connector & Cable Assembling Workshop

In connector & cable assembling workshop, the fiber optic patch cord and pigtails are produced.
The fiber optic patch cord and pigtails are tested 100% before packing.

YHT Sample Room

YHT provides one stop solution for fiber optic splicing, distribution, termination and protection products.
The main products include fiber optic patch panel, distribution box, ODF, FTTH box, fiber optic splice closure, optic splitter box, cabinet, connector, fiber patch cord, pigtail, adapter etc. which widely used in FTTx, GPON, CATV, telecommunications.

YHT Test Laboratory

YHT has its own test laboratory which ensure the goods quality reliability. It can do dust-proof test, waterproof test, UV test, temperature test, tensile test, salt spray test, impact test and so on.

Certificates

YHT has more than 24 products that got the patent for utility models and 3 software copyright and pass certificates ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007, RoHS, GB/T 29490-2013, TLC, PONY, etc.

YHT is one of biggest manufacturer of fiber optic products in China. You can meet us in many international exhibitions. Such as CommunicAsia, ECOC, OFC, ITU, CIOE, FIBER CONNECT etc.

YHT has strong R&D ability and well-experience technical person for supporting customized fiber optic products.
YHT is Your Honest Team. We are ready for supporting your fiber optic project and business.
