Name: 1W5796 Ring 1W5796 Piston Body 040 Engine 7T3928 Cylinder Liner 7T3928 Piston
Brand: Caterpillar
Price: 1 USD

Home > Machinery Engines & Parts >

1W-5796 Ring 1W5796 Piston Body .040 Engine 7T-3928 Cylinder Liner 7T3928 Piston

Categories	Cylinder Liner Kit
Brand Name:	Caterpillar
Model Number:	953, D3
Certification:	68555435543
Place of Origin:	China
MOQ:	1
Price:	Price negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10
Delivery Time:	3-5
Packaging Details:	box
model OEM:	953, D3
product name:	1W5796 PISTON BODY Caterpillar parts
cross code:	CA1W5796 1W-5796 1W5796
other name:	Piston Kit
sort:	Cylinder Liner
application:	Engine Parts
applicable:	Excavator Parts
Weight:	XX kg.

Contact Now

Add to Cart

Company Info.

Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1W5796 PISTON BODY Caterpillar parts 953, D3

Product Description

CA1W5796
1W-5796
1W5796

TRACK LOADER 953
TRACK-TYPE TRACTOR D3 Caterpillar

D3 TRACTOR 79U04709-UP (MACHINE) POWERED BY 3204 ENGINE

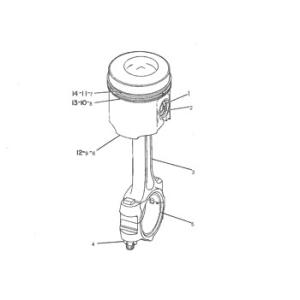

8N4079 CONNECTING ROD AND PISTON GROUP-4 Required
Engine Serial No. 45V17166-Up
Part of 1W549 Cylinder Block Group listed on Page 6C

Information

Pos.	Part No	Qty	Parts name
1.	8N-5537	[1]	PISTON GROUP
			(INCLUDES)
2.	9L-6233	[1]	RING-PISTON (COMPRESSION)
3.	9L-9316	[1]	RING-PISTON
4.	1W-5794 CA	[1]	PISTON-BODY (0.510-MM OS)
5.	9N-0581 CA	[1]	RING (OVERSIZE-COMPRESSION)
6.	9L-9673 CA	[1]	RING (OVERSIZE-OIL)
7.	1W-5796 CA	[1]	PISTON BODY (1.02-MM OS)
8.	9N-0578 CA	[1]	RING (OVERSIZE-COMPRESSION)
9.	9L-9323 CA	[1]	RING (OVERSIZE-OIL)
10.	7N-9803	[1]	PIN
11.	8N-7294 C	[2]	RETAINER
12.	8N-6308	[1]	BEARING-CONNECTING ROD (STANDARD)
	1N-3821 CA	[1]	BEARING-CONNECTING ROD (0.254-MM US)
	1N-3822 CA	[1]	BEARING-CONNECTING ROD (0.510-MM US)
	1W-3906 CA	[1]	BEARING-CONNECTING ROD (1.27-MM US)
13.	8N-3753	[1]	ROD AS
			(INCLUDES)
	9N-5082	[1]	BEARING-CONNECTING ROD
14.	9N-3832	[2]	BOLT
	9L-7669	[2]	NUT (7/16-20-THD)

OEM
