Name: 1003259 Engine 3208H34 Body Piston 040 Cylinder Liner 1003259 Pump G Ring 3208H34
Brand: Caterpillar
Price: 1 USD

Home > Construction Machinery Parts >

100-3259 Engine 3208H34 Body Piston .040 Cylinder Liner 1003259 Pump G Ring 320-8H34

Categories	Cylinder Liner Kit
Brand Name:	Caterpillar
Model Number:	416B, 426B, 428B, 436B, 438B
Certification:	68555435543
Place of Origin:	China
MOQ:	1
Price:	Price negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10
Delivery Time:	3-5
Packaging Details:	box
model OEM:	416B, 426B, 428B, 436B, 438B
product name:	1003259 PUMP GP-PISTON Caterpillar parts
cross code:	CA1003259 100-3259 1003259
other name:	Piston Kit
sort:	Cylinder Liner
application:	Engine Parts
applicable:	Excavator Parts
Weight:	XX kg.

Contact Now

Add to Cart

Company Info.

Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1003259 PUMP GP-PISTON Caterpillar parts 416B, 426B, 428B, 436B, 438B

Product Description

CA1003259
100-3259
1003259

BACKHOE LOADER 416B 426B 428B 436B 438B Caterpillar

426B BACKHOE LOADER 5YJ00001-02299 (MACHINE) POWERED BY 3054 ENGINE » 100-3259 PUMP GP-PISTON

PUMP GP-PISTON

1003259 PUMP GP-POWER STEERING
1035519-PAGE 169.01, 6E6160-PAGE 281, 6E6170-PAGE 282

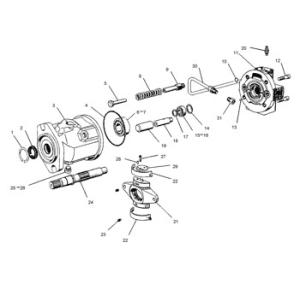

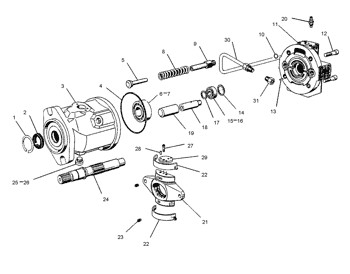

Information

Pos.	Part No	Qty	Parts name
1.	6E-3343	[1]	RING
2.	6E-4004	[1]	SEAL-SHAFT
3.	103-5517	[1]	HOUSING-PUMP
4.	3E-6770	[1]	SEAL-O-RING
5.	6E-6174	[1]	PLUNGER
6.	8J-0412	[1]	CUP-ROLLER BEARING
7.	3P-1210	[1]	CONE-ROLLER BEARING
8.	6E-6176	[1]	SPRING
9.	6E-6175	[1]	CYLINDER
10.	3E-6769	[4]	SEAL-O-RING
11.	6E-6164	[1]	HEAD
12.	095-9805 M	[4]	BOLT-SOCKET HEAD
13.	083-4419	[1]	PIN
14.	6E-3999	[1]	SPACER
15.	1P-6872	[1]	CUP-ROLLER BEARING
16.	8C-7110	[1]	CONE-BEARING
17.	6E-4000	[1]	SPACER
18.	6E-6173	[1]	GUIDE
19.	6E-6172	[1]	PISTON
20.	9T-3940	[1]	PLUG-BREAK OFF
21.	120-5721	[1]	SWASHPLATE AS
22.	6E-4003	[2]	BEARING
23.	101-0508	[2]	PLUG-ORIFICE
24.	6E-6163	[1]	SHAFT-GOVERNOR CONTROL
25.	9S-8006	[1]	PLUG-O-RING (7/8-14 THD)
26.	2M-9780	[1]	SEAL-O-RING (19.18MM ID)
27.	6V-5683 M	[1]	BOLT (M6X1X16MM)
28.	3C-8388	[1]	PIN-ROLL
29.	103-5520	[1]	CARRIER-PIN
30.	103-5521	[1]	KIT-TUBE
31.	103-5522	[1]	ADAPTER AS
	3J-7354	[1]	SEAL-O-RING (8.92MM ID)
	6E-6160 YF	[1]	ROTATING GP-PUMP
	103-5519 YF	[1]	VALVE GP-POWER COMPENSATOR
	6E-6170 YF	[1]	VALVE GP-PRESS & FLOW CMPNSTR

OEM

Product Tags:

6735-31-2140 komatsu piston
