Name: 1858979 Engine 2M5558 Piston Body See T Cylinder Liner 1858979 Piston A Ring 2M5558
Brand: Caterpillar
Price: 1 USD

Home > Construction Machinery Parts >

185-8979 Engine 2M5558 Piston Body (See T) Cylinder Liner 1858979 Piston A Ring 2M-5558

Categories	Excavator Main Hydraulic Pump
Brand Name:	Caterpillar
Model Number:	311B, 312B, 315B, 315B FM L, 318B
Certification:	68555435543
Place of Origin:	China
MOQ:	1
Price:	Price negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10
Delivery Time:	3-5
Packaging Details:	box
model OEM:	311B, 312B, 315B, 315B FM L, 318B
product name:	1858979 PISTON AS Caterpillar parts
cross code:	CA1858979 185-8979 1858979
other name:	Piston Kit
sort:	Cylinder Liner
application:	Engine Parts
applicable:	Excavator Parts
Weight:	XX kg.

Contact Now

Add to Cart

Company Info.

Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1858979 PISTON AS Caterpillar parts 311B, 312B, 315B, 315B FM L, 318B

Product Description

CA1858979
185-8979
1858979

EXCAVATOR 311B 312B 315B 315B FM L 318B Caterpillar

318B L and 318B LN Excavators ADC00001-UP (MACHINE) POWERED BY 3046 Engine

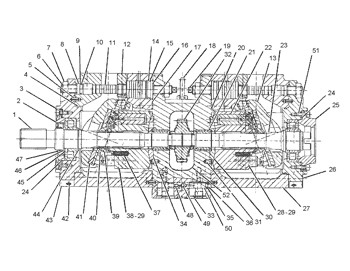

PUMP GP-PISTON

171-5813 PUMP GP-PISTON
S/N ADC1-UP; AEJ1-UP
PART OF 173-1205 PUMP & MTG GP-MAIN HYDRAULIC

Information

Pos.	Part No	Qty	Parts name
1.	170-9962	[1]	SHAFT
2.	170-9969	[1]	SEAL
3.	6V-5683 M	[4]	BOLT (M6X1X16-MM)
4.	095-1718	[2]	SEAL-O-RING
5.	095-0882	[4]	PIN-SPRING
6.	5I-8773 M	[2]	SETSCREW (M16X2X30-MM)
7.	098-5747 M	[4]	NUT (M16X2-THD)
8.	5I-8768	[2]	STOP
9.	095-1783	[2]	RING-BACKUP
10.	095-1584	[2]	SEAL-O-RING
11.	170-9968	[2]	PISTON
12.	170-9961	[2]	PIN AS
13.	5I-8781	[2]	PLATE AS
14.	095-1698	[2]	SEAL-O-RING
15.	5I-8770	[2]	RING-BACKUP
16.	5I-8767	[2]	STOP
17.	095-1575	[18]	SEAL-O-RING
18.	5I-8772	[2]	EYEBOLT
19.	5I-8774 M	[2]	SETSCREW (M16X2X39-MM)
20.	095-1717	[2]	SEAL-O-RING
21.	170-9965	[2]	BEARING
22.	185-8979	[2]	PISTON AS
23.	170-9963	[1]	SHAFT
24.	095-1711	[2]	SEAL-O-RING
25.	5I-8762	[1]	COVER
26.	102-2562 M	[8]	BOLT-SOCKET HEAD (M16X2X180-MM)
27.	5I-8763	[2]	BODY-CASING
28.	096-3150	[3]	PLUG
29.	095-1585	[4]	SEAL-O-RING
30.	170-9960	[1]	BARREL AS
31.	096-0014	[2]	PIN-SPRING
32.	133-6731	[1]	GEAR
33.	133-6730	[1]	BLOCK
34.	170-9959	[1]	BARREL AS
35.	095-1574	[1]	SEAL-O-RING
36.	095-1777	[1]	RING-BACKUP
37.	5I-8757	[18]	SPRING
38.	5I-8775	[1]	ADAPTER
39.	129-7976	[2]	RETAINER-BALL
40.	170-9966	[2]	PLATE
41.	5I-8759	[2]	PLATE
42.	8T-6759	[15]	PLUG-PIPE
43.	5I-8760	[2]	SUPPORT
44.	6V-5200	[2]	RING-RETAINING
45.	170-9964	[2]	BEARING
46.	5I-8754	[4]	SPACER-BEARING (35X45X3-MM THK)
47.	170-9967	[1]	COVER
48.	5I-8771	[1]	SEAT
49.	5H-1472	[1]	BALL
50.	5I-8765	[1]	STOP
51.	8T-0269 M	[4]	BOLT-SOCKET HEAD (M6X1X20-MM)
52.	095-1713	[1]	SEAL-O-RING

OEM
