1600mm rock pipe jacking machine,micro tunneling machine,tunnel boring machine, pipe jacking equipment

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

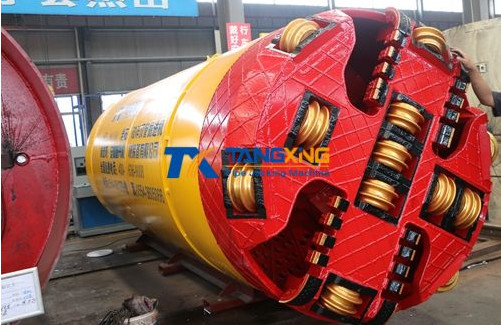

    1600mm rock pipe jacking machine/micro tunneling machine

    1600mm rock pipe jacking machine/micro tunneling machine

    E-mail:sales@tangxing.cn

    • Features
    • Technical Parameters

    Features:

    ●Designed for gravel and rock(up to 150 Mpa).
    ●Driven by inner gear, big driving torque, no axis.
    ●Direct access to the tunnel face for maintenance and repair work .
    ●Through cutterhead rotation,stones or obstructions entering the crusher cone are crushed to a conveyable grain size.
    ●Bentonite injected into the annular gap reduces friction between the extrados of the pipe and surrounding soil.

    Technical Parameters:

    SPECIFICATIONS FOR 1600MM ROCK PIPE JACKING MACHINE
    Inner Diameter
    ￠1600mm
    OD*Length
    ￠1940*4900mm
    Cutter
    Motor Power
    2*37KW
    Rated. Torque
    190KN.M
    Revolution
    3.7RPM
    Steering System
    Thrust*Qty
    80T*4
    Angle
    0~2.7
    Motor Power
    2.2KW
    Jacking Cylinder
    Thrust*Qty
    200T*4
    Stroke
    2500/3000/3500MM
    Pressure
    31.5MPA
    Slurry Pipe
    Diameter
    4INCH
    Machine Total Power
    80KW
