Parker Type 321H35 1/2'' 40 Bar High Pressure Solenoid Valve 24VDC 220VAC

Parker Type 321H35 1/2'' 40 Bar High Pressure Solenoid Valve 24VDC 220VAC

Product Features:

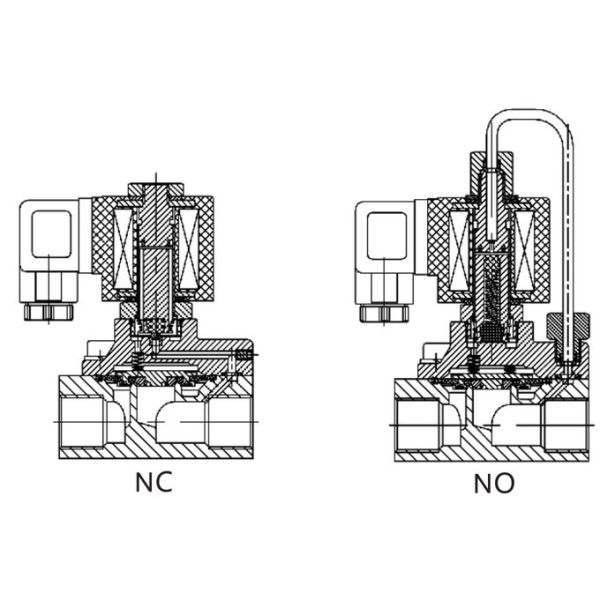

1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, laser cutting machines, air compressors, etc

Video of 321H35, 321H36:

Technical Data:​

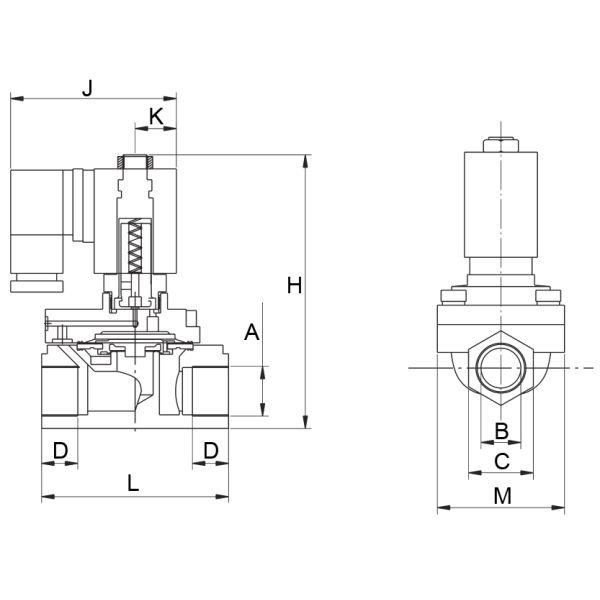

Main Dimension:

BRANDO Solenoid Valve Factory Production Video:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar
MAX 50 bar	MAX 70 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar
MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
