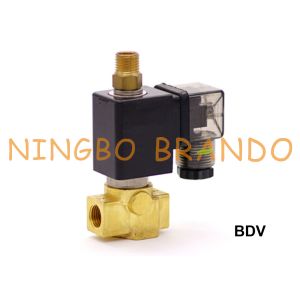

1/8'' 1/4'' 3 Way Water Air Brass Solenoid Valve Normally Closed 24V 220V

1/8'' 1/4'' 3 Way Water Air Brass Solenoid Valve Normally Closed 24V 220V

Product Features of 3 Way Brass Solenoid Valve:

1. Working Medium: Water, Air, Oil, etc
2. Working Pressure Range: 0 to 1.6 MPa
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4''
5. Top Orifice Size: 1.5mm
6. Body Orifice Size: 1.5mm, 2.5mm, 3.0mm
7. Body Material: Brass, Stainless Steel
8. Diaphragm Material: NBR, EPDM, FKM
9. Function: 3 Way Normally Closed, 3 Way Normally Open, Universal
10. Operation: Direct Acting
11. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of 3 Way Brass Solenoid Valve:

Main Dimension of 3 Way Brass Solenoid Valve:

Flow Diagrams of 3 Way Brass Solenoid Valve:

Universal Inlet: Any

Normally Closed Inlet: 2

Normally Open Inlet: 3

Brando Factory Production Video of Solenoid Valves:

BRANDO Factory Production Picture of Solenoid Valves:

Packaging and Shiping of Brando Solenoid Valves:

Internal Box	Carton	Pallet
