2B14-468 Industrial Air Spring W01-M58-6378 Firestone Bellows 2B14-468

Categories Goodyear Air Spring
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Mexico
Brand Name: Goodyear
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 2B14-468
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Stroke: 278 mm
Trademark: Goodyear
Transport Package: Carton
Specification: 38*38*22 cm
Origin: Mexico
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Shock Absorber
N.W.: 9.1 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2B14-468 Industrial Air Spring W01-M58-6378 Firestone Bellows 2B14-468

2B14-468 Industrial Goodyear Air Spring Shocks with 4 Bolts Cross to Firestone W01-M58-6378


2B14-468 Goodyear Cross OEM

Goodyear Parts NO.:2B14-468 ;
Goodyear Parts NO.:2B14 468;
Goodyear Parts NO.:2B14468

Goodyear Bellow NO.578923353
Goodyear Flexible members No.: 578-92-3-353

Firestone Parts NO.:W01-358-6378

Firestone Parts NO.::W01 358 6378

Firestone Parts NO.::W013586378
Firestone 22-1,

ContiTech Parts NO:FD 530-22 CI 3/4 NPT

ContiTech Parts NO::FD530-22 CI 3/4 NPT

Goodyear Part 2B14-468 Technical parameters


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate :159 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm


Cover Plate

Top Cover Plate Diameter: 287mm

Bottom Cover Plate Diameter: 287mm


Rubber Bellows

Rubber Bellows MAX Diameter: 406 mm

Rubber Bellows Natural Diameter : 320 mm

The Working Stroke : MIN 77 mm to MAX 355 mm

Maximum Height : 355mm

Minimum Height :77mm

Stroke Height : 278 mm


Bumper block / Buffer block

Without or With Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Design Height (mm)267
Load (at Design Height) at: 3 Bar (kN)16.7
Load (at Design Height) at: 5 Bar (kN)39.2
Load (at Design Height) at: 7 Bar (kN)41.1
Natural Frequency (@5 Bar)(fn(Hz)1.6
% of Isolation at Forced Frequency 7 Hz95.6
% of Isolation at Forced Frequency 13 Hz98.8
% of Isolation at Forced Frequency 25 Hz99.7

The usal kinds of Double Convolution Air Springs


Style 21-1 Two Ply


Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.

578922462000005789224620000020094885Y2B14-4622B14-462
578922462000042B14-46220126196N2B14-462 Bellows Air Spring2B14-462 Bellows Air Spring
578922462000825789224620008220657133Y2B14-462 Torshin2B14-462 Torshin
578922462001115789224620011120662409Ydummy for 2B14-462dummy for 2B14-462
578922463000005789224630000020157114Y2B12-4632B12-463
578922463000042B12-46320132734N2B12-463 Bellows Air Spring2B12-463 Bellows Air Spring
578922464000005789224640000020114248Y2B14-464 TOOLING NOT YET AVAILABLE2B14-464 TOOLING NOT YET AVAILABLE
578922465000005789224650000020069531Y2B14-4652B14-465
578922466000005789224660000020094886Y2B12-4662B12-466
578922466000045789224660000420132915Y2B12-4662B12-466
578922467000195789224670001920106778YENIDINE YI-2B14-467ENIDINE YI-2B14-467
578922468000042B14-46820457850N2B14-4682B14-468
578922468000195789224680001920106779YENIDINE YI-2B14-468ENIDINE YI-2B14-468
578922469000005789224690000020135749Y2B14-4692B14-469
578922469000042B14-46920135820N2B14-469 Bellows Air Spring2B14-469 Bellows Air Spring
578922469000345789224690003420106772Y2B14-469 NEWAY 90557257 A2B14-469 NEWAY 90557257 A
578922469000552B14-469 MDC20837718
2B14-469 MDC2B14-469 MDC
578922470000005789224700000020106823Y2B14-4702B14-470
578922470000042B14-47020113669N2B14-470 Bellows Air Spring2B14-470 Bellows Air Spring
578922470000345789224700003420113701Y2B14-470 NEWAY 905572032B14-470 NEWAY 90557203
578922473000005789224730000020132937Y2B14-4732B14-473
578922473000042B14-47320132936N2B14-473 Bellows Air Spring2B14-473 Bellows Air Spring
578922474000005789224740000020136941Y2B14-4742B14-474
578922474000042B14-47420136942N2B14-4742B14-474
578922474000775789224740007720215644Y2B14-474 WATSON & CHALIN AS0123G2B14-474 WATSON & CHALIN AS0123G
578922476000005789224760000020156644Y2B14-4762B14-476
578922476000042B14-47620156645N2B14-476 Bellows Air Spring2B14-476 Bellows Air Spring
578922477000005789224770000020184201Y2B12-4772B12-477
578922477000042B12-47720183207N2B12-4772B12-477
578922479000005789224790000020239817Y2B14-4792B14-479
578922479000042B14-47920239818N2B14-479 Bellows Air Spring2B14-479 Bellows Air Spring
578922480000045789224800000420258401Y2B12-4802B12-480
578922480000765789224800007620258402Y2B12-480 DANA S-3094-2372B12-480 DANA S-3094-237
578922487000005789224870000020395891YHalmek 578-9-2-3356MHalmek 578-9-2-3356M
578922487000042B14-48720395893N2B14-4872B14-487
578922488000005789224880000020428774Y2B12-4882B12-488
578922488000042B12-48820428775N2B12-4882B12-488
578922489000005789224890000020677024Y2B14-4892B14-489
578922489000045789224890000420673737Y2B14-4892B14-489

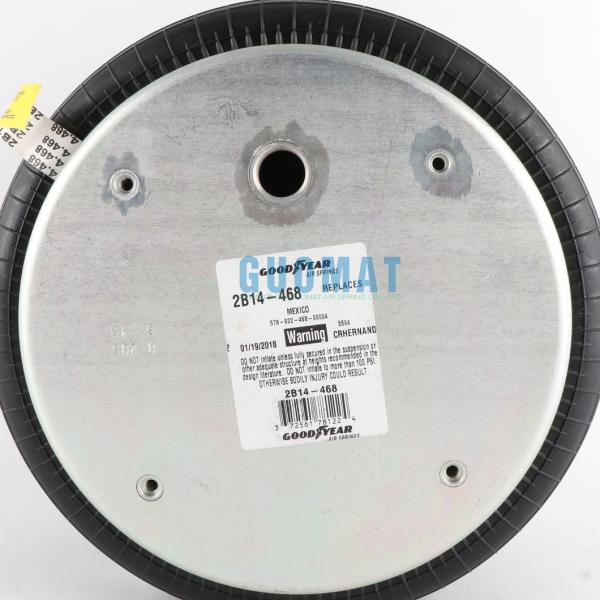

2b14-468 Goodyear Air Spring Shocks Cross to W01-M58-6378 Industrial Air Spring with Four Bolts on One Plate

2b14-468 Goodyear Air Spring Shocks Cross to W01-M58-6378 Industrial Air Spring with Four Bolts on One Plate
2b14-468 Goodyear Air Spring Shocks Cross to W01-M58-6378 Industrial Air Spring with Four Bolts on One Plate
