DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

Description:

DIN 81915 complying with German standard has several types, type A, B, C, D and E. Mounted on deck or bulwark, it can limit the position of the rope and meanwhile protect the rope from friction.

Main Technical Specification:

1. Type: Type E;

2. SWL Range: 80-200KN;

3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

4. Technical Standard: DIN 81915:1998-8

5. Weight:185 to 540kg;

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS

Main Technical Parameter:

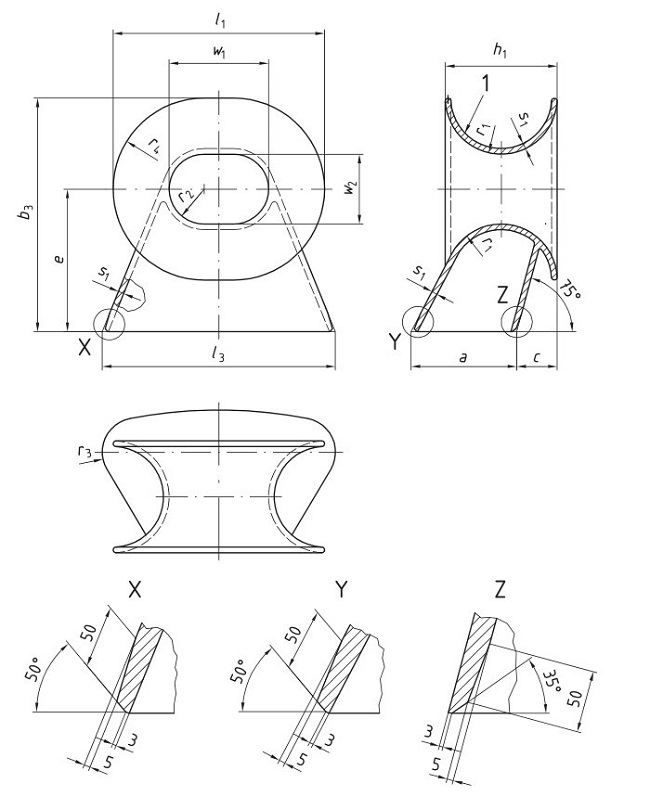

Drawing of DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
