| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| MOQ: | 1 |
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
| Function: | Mooring |
| Working Load: | 5KN to 250KN |
| Warping Head Diameter: | 200-700 mm |
| Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia.: | 11 - 46 (mm) |
| Material: | Stainless Steel (Polished), Mild Steel, Casting |
| Power: | Electric |
| Control: | Local or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc |
| Company Info. |
| Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

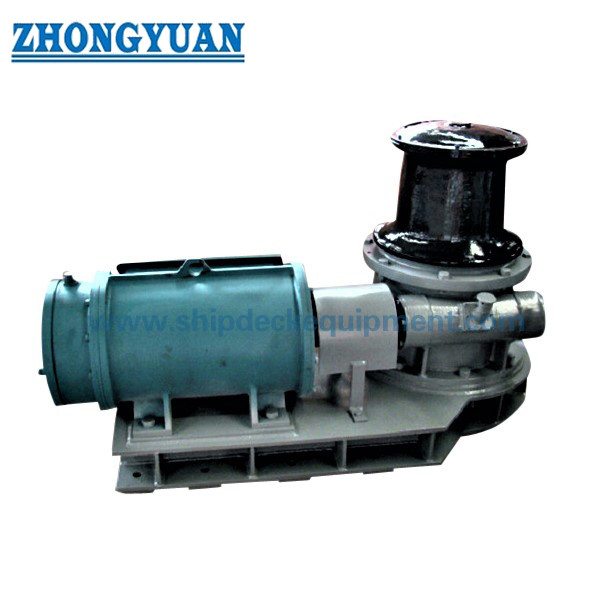

Marine Horizontal Electric Motor Mooring Capstan Ship Deck Equipment
Description:
This capstan is mounted on the foundation with bolt, It is easy operating and maintenance.
Main Technical Specifications:
Main Technical Parameters:
| Model | Pull (MT) | Speed (M/MIN) | Warping Head Dia. (mm) | Power (KN.) |
| ZY-3T/330 | 3 | 10 | 330 | 7.5 |
| 15 | 11 | |||
| ZY-5T/330 | 5 | 10 | 330 | 11 |
| 15 | 15 | |||
| ZY-5T/380 | 10 | 380 | 11 | |
| 15 | 15 | |||
| ZY-8T/380 | 8 | 10 | 380 | 18.5 |
| 15 | 30 | |||
| ZY-8T/450 | 10 | 450 | 18.5 | |
| 15 | 30 | |||
| ZY-10T/450 | 10 | 10 | 450 | 22 |
| 15 | 30 | |||
| ZY-10T/510 | 10 | 510 | 22 | |
| 15 | 30 |

Drawing of Marine Horizontal Electric Motor Mooring Capstan Ship Deck Equipment

|
