Pharma Paintball Maker Softgel Capsule Encapsulation Machine

Categories Pharmaceutical Machinery
Brand Name: Kunyou
Model Number: S406
Certification: CE,ISO9001
Place of Origin: China,Beijing
MOQ: 1 set
Payment Terms: T/T, L/C,Western Union
Supply Ability: 30 Set/Sets
Delivery Time: 20-60 days
Packaging Details: Wood cages
Type: Filling Equipment
Application: Liquid,Capsule
After-sales service provided: Engineers available to service machinery overseas
Product name: softgel encapsulating machine
Warranty: 1 Year
Material: 304/316L Stainless Steel
Production capacity: 6000-120000pcs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pharma Paintball Maker Softgel Capsule Encapsulation Machine

Food / Pharmaceutical Machinery For Softgel / Paintball Maker / 43470 Capsules / Hour
Quick Detail
Product NameSoft capsulate/Paintball making machineDriven TypeElectric
Capacity43470 Capsule /hour, 8#OV; 18000 Paintball/hour, 0.68"BallControl ModeFull Automatic
ApplicationFood, pharmaceutical, fish oil makingCapsule shapeOV, OB,etc
Product Description

S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.

Soft capsule making machine abosorbs advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials to meet the GMP requirements of well-designed.

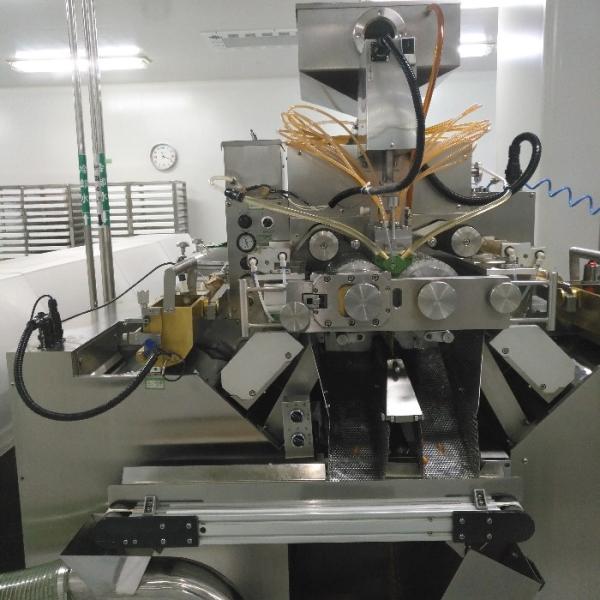

Capsule making machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.

This machine can be applied to all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.

Specification
ModelS406
Die roll diameterФ103mm
Die roll length152mm
Die roll speed0~5rpm
Plunger numbers10
Dosage tolerance± 2%
dimension880X640X1900mm
weight900kg
Power consumption7kw
Control modePLC+HMI Switch/buttons
Output rate8#OV 43470 pcs/hour
Competitve Advantages
  • Good stability, die roll shaft in long time parallyize
  • Adjustable rotation rate during 0-5rpm
  • Easy to operate and clean, conforming to GMP
  • Compact and beautiful, save electricty and space
  • It can be assembled or disassembled with single hand
  • Big air flow, easy to operate
  • Reduce the oil consumption by the micro lub design
  • Factory after sales service
  • More than 10 years use life
  • customise design for the machine
