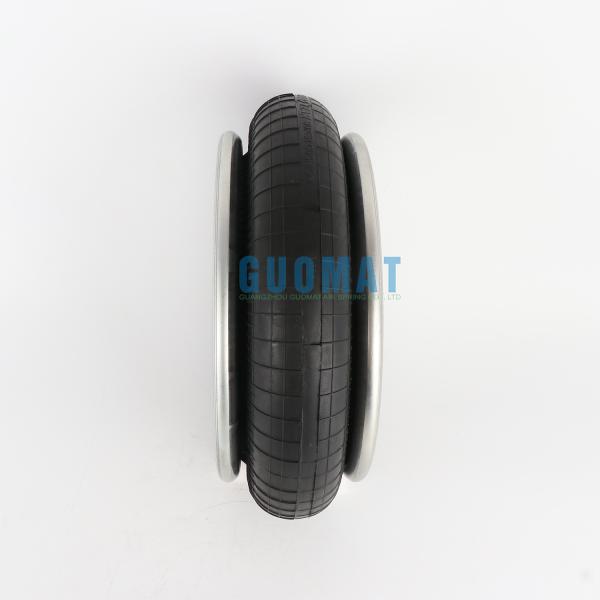

386mm Diameter Industrial Air Springs Firestone W01-M58-6369 Cross 578-91-3-351 Goodyear 1B14-372

Categories Industrial Air Springs
Brand Name: Goodyear
Model Number: 1B14-372
Certification: ISO/TS16949, ISO9001
Place of Origin: Mexico
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
N.W.: 5.5 Kg
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Maximum Diameter: 386 mm
Trademark: Goodyear
Transport Package: Cartons
Specification: 33*33*22 cm
Origin: Mexico
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Car Make: Hendrickson
Position: Front and Rear
OEM: Yes
Type: Ari spring
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

386mm Diameter Industrial Air Springs Firestone W01-M58-6369 Cross 578-91-3-351 Goodyear 1B14-372

Industrial Air Springs Firestone W01-M58-6369 Cross 578-91-3-351 Goodyear 1B14-372


Firestone W01-M58-6369 Cross OEM:


Firestone part number:W01-M58-6369
Firestone part number:W01 M58 6369
Firestone part number:W01 M58 6369


Goodyear part number:1B14-372 ;
Goodyear part number:1B14 372;
Goodyear part number:1B14372


Goodyear Bellows number:578-91-3-351
Goodyear Bellows number:578 91 3 351
Goodyear Bellows number:578913351

Goodyear Bellows 578 912 372;
Goodyear Bellows 578912372;
Goodyear Bellows 578-91-2-372


Cross Contitech NO.:FS 530-14;
Cross Contitech NO.:FS53014;
Cross Contitech NO.:FS530-14

Contitech:FS 530-14 CI G 3/4
Contitech:FS530-14 CI G 3/4


Firestone W01-M58-6369​ Specifications and Technical Data


nuts/blind nuts

Upper cover screw (nut) teeth: 4 X M8

Top plate screw center distance: 158.8 mm

Screw (nut) teeth of the bottom cover plate: 4 x M8

The screw center distance of the bottom cover plate: 158.8 mm

The air hole distance between the nuts is 79.4 mm



Ga air hole/air inlet/air fitting

Air hole/air inlet: 3/4 N P.T.F.



over cover

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289 mm


Bell rubber bellows

Rubber bellows natural diameter 380 mm

Maximum diameter of rubber bellows: 406 mm

Natural height of rubber bellows: 120 mm

Working stroke: maximum 160 mm to minimum 81 mm

B bumper block/buffer block

No bumper block

风格 盲螺母,1/4 BSP W01-M58-6371113-1 盲螺母,3/4 BSP W01-M58-6369沉头 钢珠环,40 毫米螺栓,螺母,垫圈 W01-M58-7539仅橡胶波纹管 W01-358-0150组装重量...................................................... ..........6.89 公斤.强制折叠到最小高度 (@ 0 BAR) 111 NStyle blind nut, 1/4 BSP
W01-M58-6371
113-1 blind nut,
3/4 BSP W01-M58-6369
Countersunk steel ball ring, 40 mm bolts, nuts, washers
W01-M58-7539 Only rubber bellows W01-358-0150 Assembly weight... ...............6.89 kg.
Force to fold to minimum height (@ 0 BAR) 111 N
