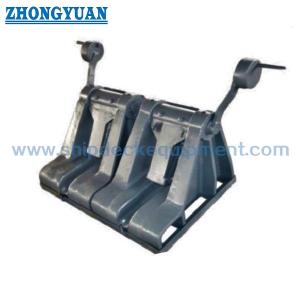

JIS F 2031 Casting Steel Pawl Type Chain Stopper Ship Mooring Equipment

JIS F 2031 Casting Steel Pawl Type Chain Stopper Ship Mooring Equipment

Description:

JIS F2016 casting steel pawl type chain stopper is designed to be applicable to U2 and 3 anchor chains. Pawl type chain stopper is installed between the windlass and hawsepipe in order to clamp the anchor chain when ship sails. The windlass breaking hold capacity is 45% of the anchor chain breaking force with installation of anchor chain stopper. While it is 80% without chain stopper. It proves that the chain stopper shared big force of the windlass and well protect this main deck machinery.

Main Technical Specification

1. Technical Standard: JIS F2031:1998;
2. Nominal Size:60 to 122;
3. Type: Casting Steel Pawl type, A, B ;
4. Chain Size: 58-122mm;
5. Weight: 401 to 2900kg;
6. Materials: Mild Steel, C-Mn Steel, Casting Steel, Forging C-Mn Steel,
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, customized surface treatment available.
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
9. Can be Customized as shipyard request

Main Technical Parameters:

Drawing of JIS F 2031 Casting Steel Pawl Type Chain Stopper Ship Mooring Equipment

Founded in the 1990s, Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd. comprises four factories and one exporting company,
employing over 300 personnel with 20 experienced technicians & engineers. Our export trade company facilitates seamless delivery of
cargo worldwide.

Our factories are certified with ISO 9001, OHSAS 18001, ISO 14001, and ISO 45001, as well as possessing Type Approval certificates
from DNV, LR, BV, and ABS. Additionally, we hold Works Approval certificates from ABS, DNV, LR, and BV, various class approved
WPS & qualified welders. All our products are eligible for certification from IACS classification societies such as DNV, ABS, LR, BV,
CCS, RINA, KR, NK, IRS, and RMRS. Our factories have secured two national patents, one for a steel plate rolling machine and two
utility model patents.

We manufacture Deck Equipment & Machinery, Mooring & Towing Equipment, Deck Outfitting, Hydraulic Cylinder, Hydraulic Power
Unit, Shaft, Rudder Stock, Shaft and Rudder system, Marine Hardware, Lifting & Lashing Equipment, Hoisting & Rigging.

We distribute Lifeboat, Rescue Boat, Boat Launching Appliance and Davit, Life-saving Equipment and Facilities, Fire-fighting
equipment, Rubber Fender, Rubber Packing, Pumps, Valves, Pipe Fittings, Multi-core Pipes and accessories, Steel Wire Rope,
Mooring Rope, Rope Nets, Anchors & Anchor Chains, Various Chains;

We pride ourselves on manufacturing & delivering reliable, high-quality products at competitive prices to our esteemed clients.

Our major equipment and facilities include various CNC machining centers with a range of CNC machine tools & CNC cutting
machines, boring and milling machines, hydraulic press machinery, plate rolling machines, welding robots, welding equipment, and
shot blasting machines, dust free paint workshop, etc.
