| Categories | Water Bowser Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW0570BP |
| Certification: | CCC, BV, SGS |
| Place of Origin: | SUIZHOU, CHINA |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units/month |
| Delivery Time: | 30-35 Working Days |
| Packaging Details: | naked, waxed-bulk ship-ro-ro |
| Brand: | Dongfeng,Sinotruk,Foton,Isuzu,Faw,Shacaman |
| Drive Mode: | 4*2 4*4 6*2 8*4, etc. As per cusomer request. |
| Tank Material: | Q235B And Stainless Steel For Optional |
| Tank Size: | 5CBM; 8CBM; 10CBM; 12CBM; 15CBM |
| Tank Capacity: | 5t; 8t; 10t; 12t; 15t |
| Tank Thickness: | 4mm; 5mm; 6mm |
| Water Pump Flow: | 20m³/h |
| Water Diversion Time: | <15min |
| Sprayer Dimension: | 1100*500*1700mm |
| Water Cannon Range: | 30m |
| Water Consumption: | 0.8—1 m3/h |
| Water Suction Depth: | 7m |
| Water Sprinkle Width: | 15m |
| Logo and Painting: | As Per Customer's Requests |
| Warranty: | 1 year |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw,
Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless
steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water
delivery.
Product Specification
| General Technical Parameters | |||
| Overall Dimension | 7000*2300*2500(mm) | ||
| Gross Vehicle Weight | 8280(Kg) | ||
| Curb Weight | 3785(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Foton | ||
| Drive model | 4*4 | ||
| Cabin | Single, Left Hand Driving | ||
| Number of Passengers | 3 (2 in cabin, 1 in working platform) | ||
| Engine | Model | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Power | 83KW/113HP | ||
| Emission standard | EURO 2or 3 | ||
| Displacement | 3856(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 3800(mm) | ||
| Front/Rear Axle Loading | 2700/5000(Kg) | ||
| Tire | 8.25R20, 6pcs + 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Superstructure Specification | ||
| Water Tanker | Dimension | 4200*1900*1300(mm) |
| Material | Q235B carbon steel | |
| Tanker volume | 5500Liters | |
| Thickness of Tanker | 4mm | |
| Water Pump Material | carbon steel | |
| Vertical suction | 7m | |
| Sprinkling width | 15m | |
| Range of Water Gun | 30m | |
| Pump Flow | 20m³/h | |
| Range of Water Pump | 90m | |
| Other Configuration | High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc. | |
| Options | Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc. | |

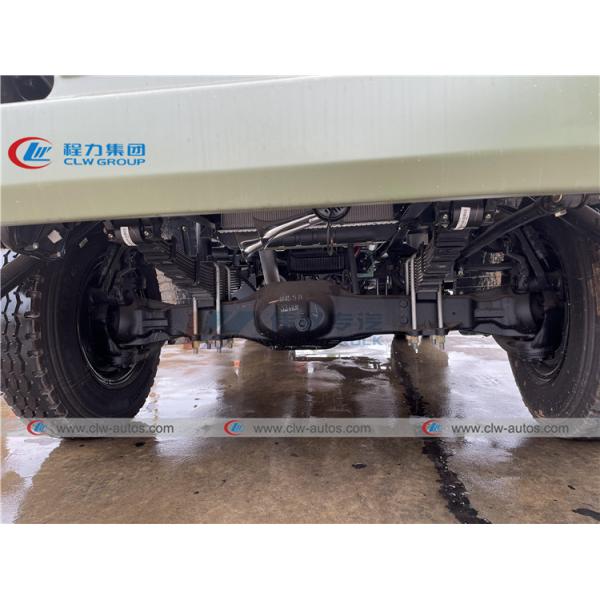

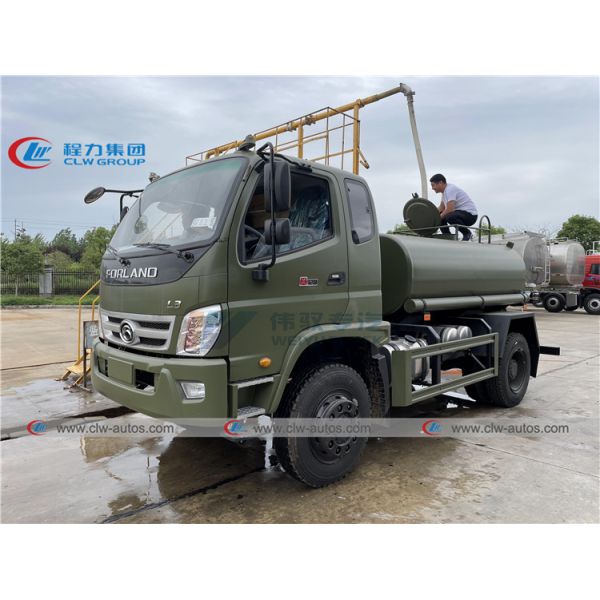

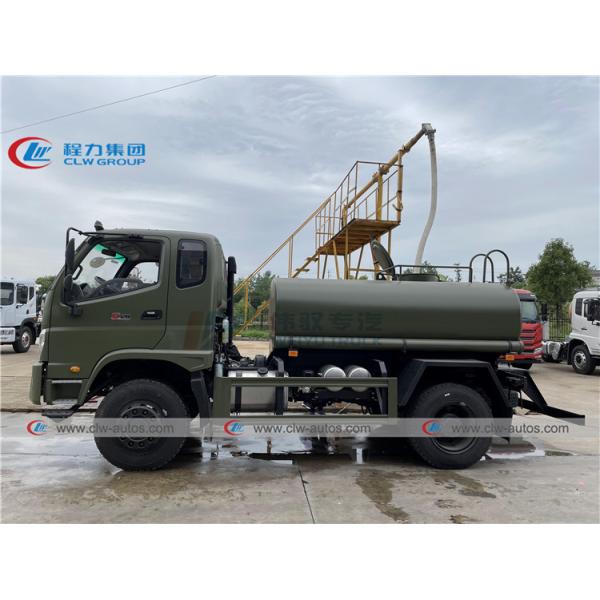

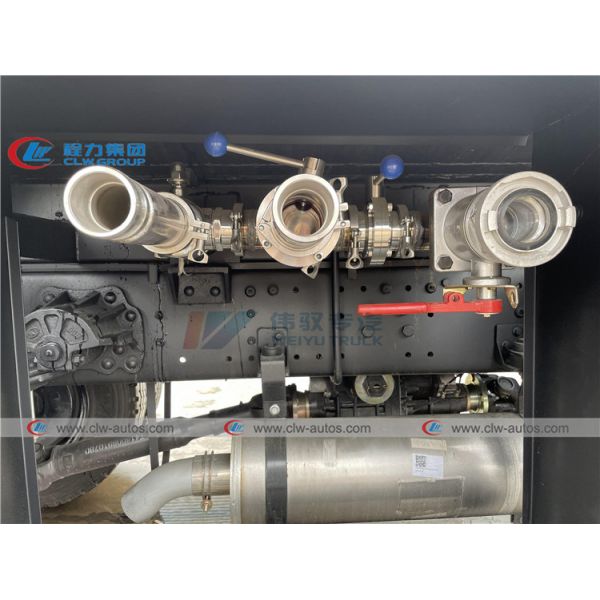

Reference Photos
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox,
axles; One set of easily worn spare parts of truck chassis for
free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to
customer's country to assist the installation and operation if
order QTY.is more than 10 units. Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered
water bowsers to many Africa and south-east Asian,south-American
countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
