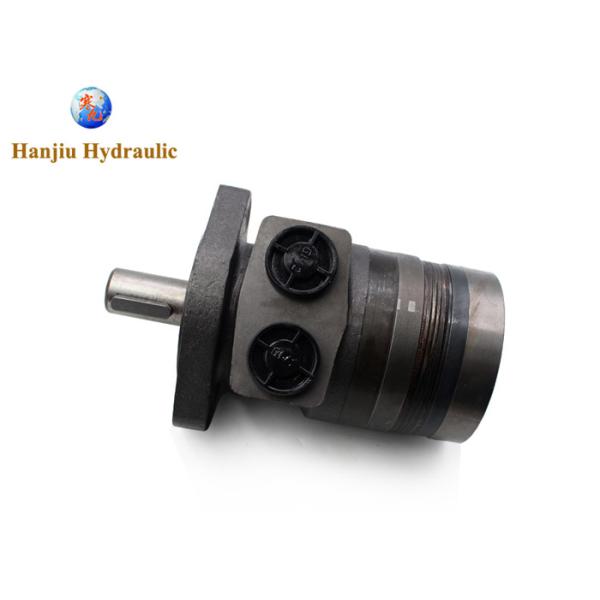

John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc

Categories Orbit Hydraulic Motor
Brand Name: HANJIU
Model Number: TE0295
Certification: CE
Place of Origin: CHINA
MOQ: 30 Sets
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Delivery Time: 20-25 work days
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Type: high torque hydraulic motor
Max Speed: 724rpm-924rpm
Displacement: 295cc
Warranty: 12-18 months
Application: sweepers,trenchers, winch,roller etc.
torque: 295N.M-5445N.M
flow: 75--95 L/MIN
pressure: 21mpa-315mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc

HYDRAULIC MOTORS JOHN DEERE 3510/3520 ROD CUTTER GENUINE SPARE PARTS CB11423252


John Deere, JD spare parts, components--hydraulic motors/orbit motors/geroler motors


CB11480557


CB11480558


CB11480559


CB11423252


BME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



Main Specifications:


TypeBME2BME2BME2BME2BME2BME2BME2BME2BME2BME2BME2
6580100125160200230250295315375
Geometric displacement66.881.3101.6127157.2193.6226257287.8314.5370
(cm3 /rev.)
Max. speed (rpm)cont.667543439350283229247216296178152
int.842689553441355289328287254235199
Max. torque (N*m)cont.126157191245307382378381393448439
int.176215268335422520528543547587613
Max. output (kW)cont.8.38.87.98.98.999.99.38.787.6
int.13.914.413.514.115.615.717.916.515.614.314
Max. pressure drop (MPa)cont.141414141414121110109
int.19191919191916.515.514.513.512.5
peak2020202020201818171616
Max. flow (L/min)cont.4545454545455757575757
int.5757575757577575757575

1,model numberBME2-295
2,displacement295ml/r
3,flange2-bolt SAE flange
4,shaftkey shaft 25.4mm
5,oil port7/8-14 UNF
6,drain---
7,rotationStandard
8,paintBlack
9,replaceParker TE TG TF
